Remove/install door sill molding - AR68.30-P-4100GH

MODELS 163.113 /128 /136 /154 /157 /172 /174 /175

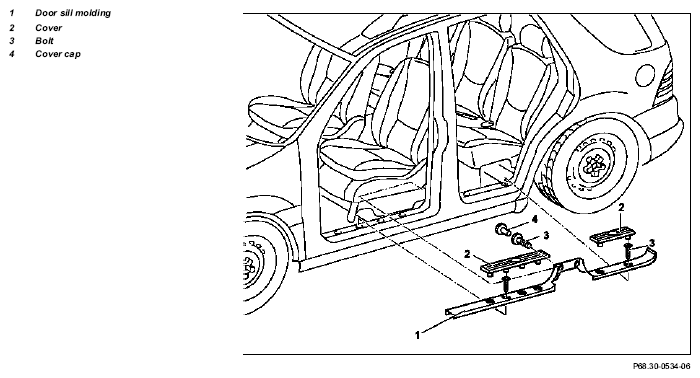

Fig 1: Identifying Door Sill Molding

	Remove/install
1	Remove covers (2) from door sill molding (1) upward	Up to 08/99:  Start at center of covers so that retaining lugs of covers are not damaged. As of 09/99:  Start at the front of the front covering and the rear of the rear covering in order not to damage the retaining lugs.
2	Unscrew screws (3) on door sill molding (1)
3	Remove cap (4) on B-pillar
4	Unscrew screws (3) from B-pillar
5.1	Remove rear pin from door sill molding (1)	Up to 08/99.
6	Pull out the door sill molding (1) on the C-pillar paneling forwards	Danger of breaking!  Installation:  Use an assembly wedge to lift up the C-pillar paneling and door seal until the door sill molding can be inserted without any problems.
		Assembly wedge	Figure
7	Install in the reverse order

Fig 2: Identifying Assembly Wedge (110 589 03 59 00)
