Remove/install paneling in footwell - AR68.30-P-4010GH

MODELS 163.113 /128 /136 /154 /157 /172 /174 /175

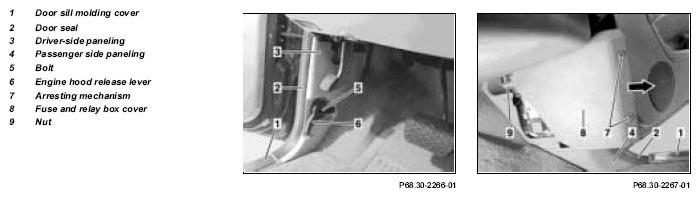

Fig 1: Identifying Paneling In Footwell

	Remove/install
1	Remove front door sill molding cover (1)
2	Unscrew screws from door sill molding on rocker panel	Only two front screws.
3	Pull off door seal (2) in the area of driver's side paneling (3) or front passenger's side paneling (4)
4	Unscrew screw (5) for engine hood release lever (6) on A-pillar	Driver's side only.
5	Unhook engine hood cable and remove engine hood release lever (6)	Driver's side only.
6.1	Rotate locks (7) on the cover of the fuse and relay box (8) 1/4 revolution counterclockwise into the vertical position	As of 09.99. Passenger side only.
7.1	Pull back cover of fuse and relay box (8) (arrow) and remove	As of 09.99. Passenger side only.
8.1	Unscrew nut (9)	As of 09.99. Passenger side only.
9	Unclip driver's side paneling (3) and front passenger's side paneling (4) and remove	Lift door sill molding slightly to allow removal.
10	Install in the reverse order
