Preparations for distance and comparison measurements - AR40.30-P-0401I
MODEL 215, 220
Shown on engine 112 without 4MATIC
Fig 1: Identifying Preparations For Distance And Comparison Measurements - Shown On Engine 112 Without 4MATIC (1 Of 3)
Shown on engine 113 without 4MATIC
Fig 2: Identifying Preparations For Distance And Comparison Measurements - Shown On Engine 113 Without 4MATIC (1 Of 3)
Shown on Engine 137
Fig 3: Identifying Preparations For Distance And Comparison Measurements - Shown On Engine 137 (1 Of 3)
Shown on engine 113 with 4MATIC
Fig 4: Identifying Preparations For Distance And Comparison Measurements - Shown On Engine 113 Without 4MATIC (1 Of 3)
| 1.1 | Detach lower engine compartment paneling | Vehicles with gasoline engines | AR61.20-P-1105M |
| 1.2 | Remove bottom section of soundproofing capsule | Vehicles with diesel engines | AR94.30-P-5300M |
| 2 | Screw in threaded bolts (07n) | ||

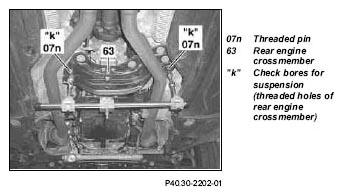

Insert threaded bolts into threaded holes "k". To do so, unscrew the corresponding bolts (refer to picture) of rear engine crossmember (63). |
|||

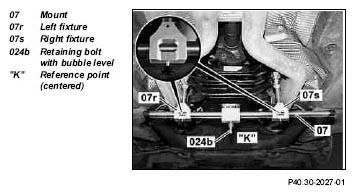

| 3 | Install cradle (07) horizontally and adjust fixtures (07r, 07s) according to the vehicle model concerned | AR40.30-P-0401-01A | |
| Figure | |||

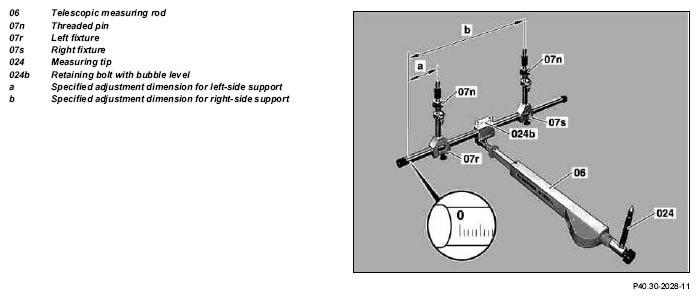

| 4 | Install telescopic measuring rod (06) on retaining bolt (024b) with connecting parts | ||
| Figure | |||
| Figure | |||
| Figure | |||
| Figure | |||
| Fig 12 | |||
| 5 | Carry out distance and comparison measurements on front and rear axles | AR40.30-P-0402I | |
| 6 | Detach cradle (07) and threaded bolts (07n) | ||
| 7 | Screw in bolts for rear engine crossmember (63) at left and right | *BA22.10-P-1003-01L | |
| *BA22.10-P-1003-01D | |||
| 8.1 | Install lower engine compartment paneling. | Vehicles with gasoline engines | AR61.20-P-1105M |
| 8.2 | Remove bottom section of soundproofing capsule | Vehicles with diesel engines | AR94.30-P-5300M |
| Number | Designation | Engine 112.922/944, 113.941/960, 137.970 in model 220 | Engine 275.950/980 in model 220 | |
|---|---|---|---|---|
| BA22.10-P-1003-01L | Bolt, rear engine crossmember to body | Nm | 40 | 40 |
| Number | Designation | Engine 112.975, 113.948/966 in Model 220 | Engines 275.950/ 980 in model 215 | Engine 137.970 in model 215 | |
|---|---|---|---|---|---|
| BA22.10-P-1003-01L | Bolt, rear engine crossmember to body | Nm | 40 | 40 | 40 |
| Number | Designation | Engine 613.960 in model 220 | Engine 628.960 in model 220 | |
|---|---|---|---|---|
| BA22.10-P-1003-01D | Bolt/nut, rear engine crossmember to body | Nm | 40 | 40 |
