Adjusting fixtures for distance and comparison measurement according to the model concerned - AR40.30-P-0401-01A

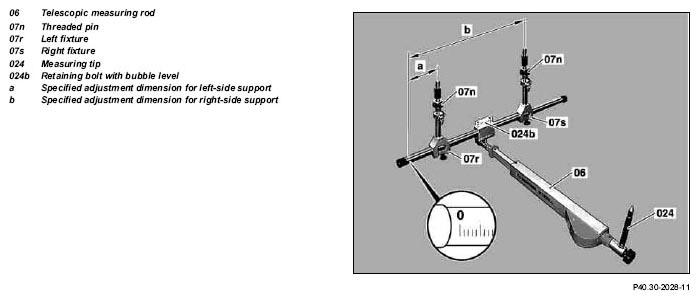

- Insert cradle (07) horizontally and adjust left fixture (07r) and right fixture (07s) according to the model concerned.
The cradle (07) represents the center of the vehicle (reference point "K").
Shown on model 220 without 4MATIC
Fig 2: Adjusting Fixtures For Distance And Comparison Measurement - Shown On Model 220 Without 4MATIC (1 Of 2)
Fig 3: Adjusting Fixtures For Distance And Comparison Measurement - Shown On Model 220 Without 4MATIC (2 Of 2)
| Designation | Model 170 | Model 129 | Model 140 | Model 202 except engine 112, 113, model 208 except engine 112, 113 | Model 202 with engine 112, 113, model 208 with engine 112, 113 | Model 210 except 210.08/28 | ||
|---|---|---|---|---|---|---|---|---|
| Dimension | "a" | mm | 80 | 66 | 59 | 83 | 70 | 76.5 |
| "b" | mm | 363.5 | 374 | 381 | 365 | 373 | 375 | |
| Designation | Model 210.08/28 | Model 215, model 220 without 4MATIC | Model 220 with 4MATIC | Model 164.1 | Model 164.8 | Model 251 | ||
|---|---|---|---|---|---|---|---|---|
| Dimension | "a" | mm | 59 | 73 | 73 | 3 | 3 | 30 |
| "b" | mm | 480 | 372 | 497 | 526 | 526 | 514 | |
