Carry out distance and comparison measurements on front and rear axles - AR40.30-P-0402I

MODEL 215, 220

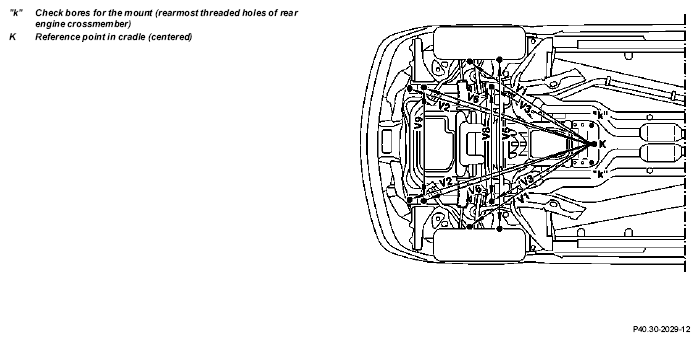

Shown: front axle on model 220 without 4MATIC and with AIRmatic

Fig 1: Identifying Distance And Comparison Measurements - Shown: Front Axle On Model 220 Without 4MATIC And With Airmatic

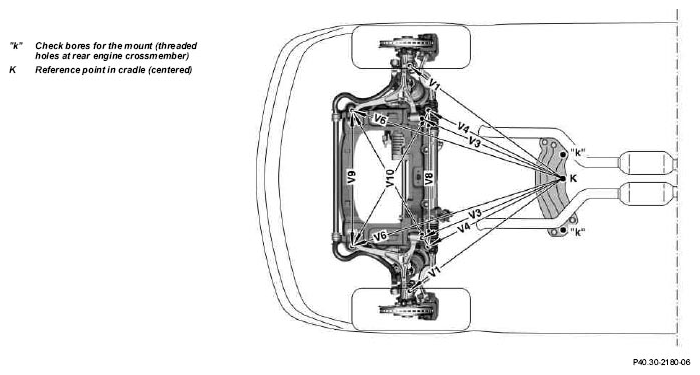

Shown: front axle on model 220 with 4MATIC

Fig 2: Identifying Distance And Comparison Measurements - Shown: Front Axle On Model 220 With 4MATIC

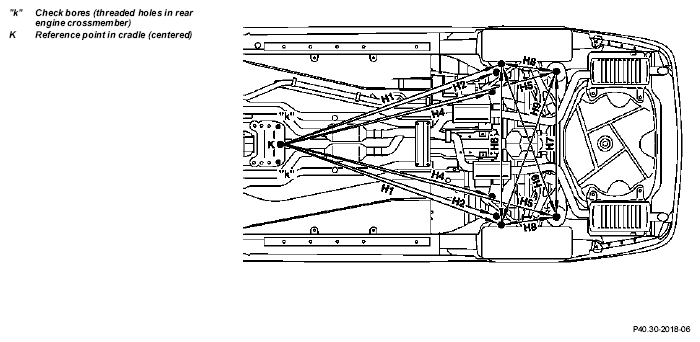

Shown: rear axle on model 220 with AIRmatic

Fig 3: Identifying Distance And Comparison Measurements - Shown: Rear Axle On Model 220 with AIRmatic

1	Preparations for distance and comparison measurements		AR40.30-P-0401I
2.1	Carrying out distance and comparison measurements on front axle	Model 215, model 220 without 4MATIC: with measuring mounting set 140 589 09 63 00	AR40.30-P-0402-01I
		Telescopic measuring rod	Figure
		Telescopic measuring rod	Figure
		Cradle	Figure
		Set of measurement fixtures	Figure
		Connecting parts	Figure
		Prufwerte	*BE40.30-P-1001-06B
		Model 215, model 220 without 4MATIC: with measuring mounting set 168 589 07 63 00	AR40.30-P-0402-01N
		Telescopic measuring rod	Figure
		Telescopic measuring rod	Figure
		Cradle	Figure
		Set of measurement fixtures	Figure
		Connecting parts	Figure
		Prufwerte	*BE40.30-P-1001-06B
		Model 220 with 4MATIC	AR40.30-P-0402-01IW
		Telescopic measuring rod	Figure
		Telescopic measuring rod	Figure
		Cradle	Figure
		Set of measurement fixtures	Figure
		Connecting parts	Figure
		Test values	*BE40.30-P-1001-06B
3.1	Carry out distance and comparison measurements on rear axle	with measuring mounting set 140 589 09 63 00	AR40.30-P-0402-02I
		Telescopic measuring rod	Figure
		Telescopic measuring rod	Figure
		Cradle	Figure
		Set of measurement fixtures	Figure
		Connecting parts	Figure
		Test values	*BE40.30-P-1001-05B
		with measuring mounting set 168 589 07 63 00	AR40.30-P-0402-02N
		Telescopic measuring rod	Figure
		Telescopic measuring rod	Figure
		Cradle	Figure
		Set of measurement fixtures	Figure
		Connecting parts	Figure
		Prufwerte	*BE40.30-P-1001-05B

TEST VALUES FOR DISTANCE AND COMPARISON MEASUREMENT ON FRONT AXLE

Number	Designation			Model 215	Model 220 except 220.083/084/087/183/184/187	Model 220.083/084/08 7/183/184/187
BE40.30-P-1001-06B	Dimension	V1	mm	4	4	4
		V2	mm	4	4	-
		V3	mm	3	3	3
		V4	mm	-	-	4
		V5	mm	860 ±3	860 ±3	-
		V6	mm	3	3	3
		V7	mm	-	-	-
		V8	mm	765 ±3	765 ±3	809 ±3
		V9	mm	819 ±3	819 ±3	815 ±3
		V10	mm	-	-	4
		See picture in		AR40.30-P-0402-01I	AR40.30-P-0402-01I	-

TEST VALUES FOR DISTANCE AND COMPARISON MEASUREMENTS ON REAR AXLE

Number	Designation			Model 215	Model 220
BE40.30-P-1001-05B	Dimension	H1	mm	4	4
		H2	mm	3	3
		H4	mm	4	4
		H5	mm	6	6
		H6	mm	1096 (± 2)	1096 (± 2)
		H7	mm	1085 (± 2)	1085 (± 2)
		H8	mm	3	3
		H9	mm	3	3
		See picture in		AR40.30-P-0402-02N	AR40.30-P-0402-02I

Fig 4: Identifying Telescopic Measuring Rod (124 589 01 19 00)

Fig 5: Identifying Telescopic Measuring Rod (124 589 02 19 00)

Fig 6: Identifying Mount (170 589 00 63 00)

Fig 7: Identifying Set Of Measurement Fixtures (140 589 09 63 00)

Fig 8: Identifying Set Of Measurement Fixtures (168 589 07 63 00)

Fig 9: Identifying Connecting Pieces (124 589 08 63 00)
