Removing and installing side paneling in rear - AR68.30-P-4780K
MODEL 208.3
| Removal, installation | |||
| 1 | Remove rear seat cushion | AR91.12-P-1720K | |
| 2 | Remove paneling on C-pillar | AR68.30-P-4490K | |

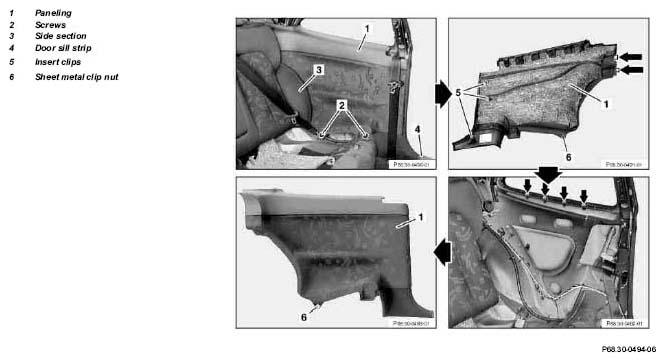

| 3 | Remove door sill strip (4) | ||
| 4 | Unscrew screws (2) | ||
| 5 | Remove side section (3) of rear backrest | ||
| 6 | Unclip paneling (1) in area of B-pillar toward center (3 insert clips) | ||
| 7 | Pull paneling (1) up out of sheet metal clips (4 each, arrows) in area of rear side windows and out of rear shelf | ||
| 8 | Put down paneling (1) | ||
| 9 | Reinstall in opposite order |
