Removing and installing lining on C-pillar - AR68.30-P-4490K

MODEL 208.3

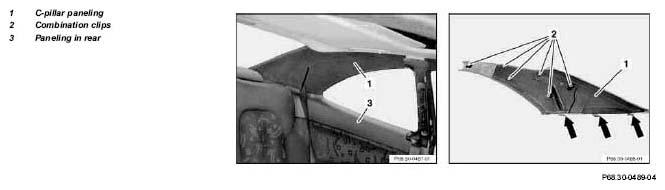

Fig 1: Identifying Lining On C-Pillar Remove/Install Components

	Removal, installation
1	Remove paneling on B-pillar		AR68.30-P-4700K
2	Unclip paneling (1) toward middle (6 combination clips)
3	Pull paneling (1) out of rear shelf toward front and remove paneling in rear (3 hooks, arrows).
4	Put paneling down (1)	To completely remove the paneling (1) detach seat belt end fitting and guide seat belt through.
			*BA91.40-P-1001-01A
5	Reinstall in opposite order

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 202, 208.3	Model 208.4	Model 210
BA91.40-P-1001-01A	Bolt on seat belt end fitting	Nm	35	35	35
