Removing and installing folding rear backrest - AR91.12-P-1720K

MODEL 208.3

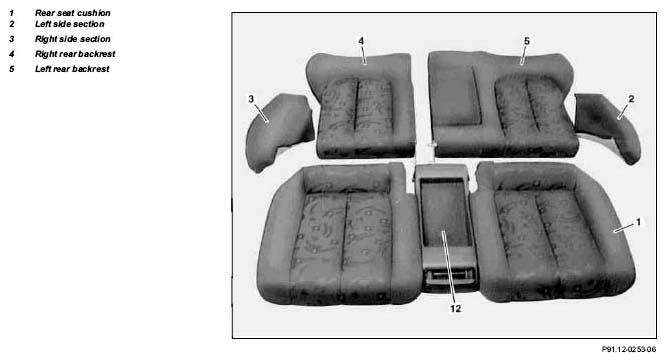

Fig 1: Identifying Folding Rear Backrest Remove/Install Components (1 Of 2)

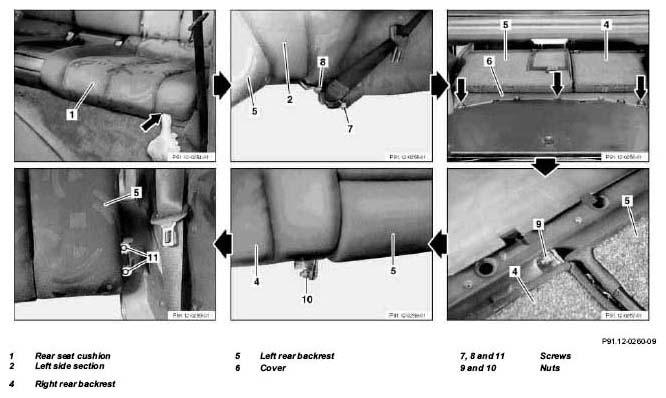

Fig 2: Identifying Folding Rear Backrest Remove/Install Components (2 Of 2)

	Removal, installation
1	Move both front seats forward
2	Press both release buttons (arrow), lift rear seat cushion (1) at front and remove	When installing insert insulating mat and expose belt buckles. Insert rear seat cushion (1) at rear into the two sheet metal lugs on the vehicle floor and catch at front
3	Unscrew screws (7 and 8)
4	Lift side sections (2 and 3) out of holder on wheelhouse and paneling in rear
5	Remove both side sections (2 and 3)
6	Unhook both rear backrests (4 and 5) and pivot forward
7	Remove cover (6)
8	Unscrew nuts (9 and 10)
9	Unscrew screws (11) on left and right
10	Remove rear backrest (4 and 5) and lay down on suitable surface
11	Reinstall in opposite order
