Speed-sensitive power steering at vehicle speed > 100 km/h, function - GF46.50-P-2900A
MODEL 210 with CODE (213a) Speed-sensitive power steering

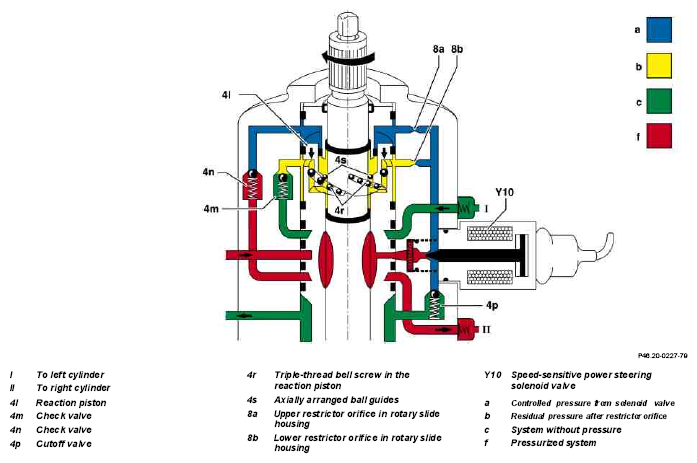

The speed-sensitive power steering solenoid valve (Y10) is fully open (no power supply). The steering moment for the driver turning the steering wheel increases according to a specified upper limit which is determined by the cutoff valve (4p).
Once the cutoff valve (4p) is opened, the steering moment for the driver turning the steering wheel remains constant.
| Rack-and-pinion steering, function when driving straight ahead | GF46.25-P-3100A | ||
| Rack-and-pinion steering, function on left lock | GF46.25-P-3200A | ||
| Rack-and-pinion steering, function on right lock | GF46.25-P-3300A |
