Rack-and-pinion steering straight-ahead driving function - GF46.25-P-3100A
MODEL 210

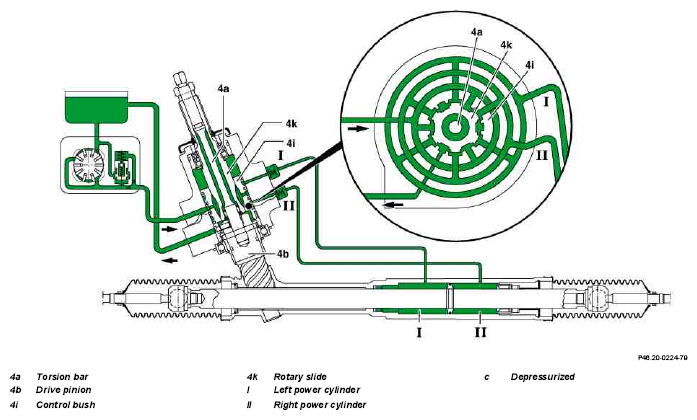

The rotary slide valve is comprised of the rotary slide (4k) which has six control grooves with ground control edges on its casing surface, and the control bush (4i) also with six control grooves which correspond to those of the rotary slide.
The torsion bar (4a) is fixed by pins to the rotary slide (4k) on one side and to the drive pinion (4b) on the other side. It keeps the control valve in the neutral position as long as the steering is not turned.
