Removing and installing fixed window in rear door - AR72.12-P-1970E

MODEL 202, 210

Illustrated on model 202

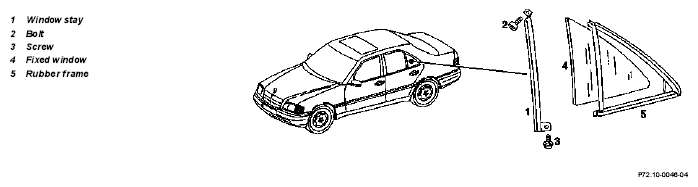

Fig 1: Identifying Fixed Window In Rear Door Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Remove window crank	Model 202	AR72.10-P-1100GV
2	Remove door liner on rear door	Model 202	AR72.12-P-1010E
		Model 210	AR72.12-P-1010F
3	Pull foil off of inner door panel	Replace damaged foil.
4	Remove inner sealing rail		AR72.10-P-1600E
5	Remove outer sealing rail		AR72.10-P-1700E
6	Remove crank operated window in rear door	Model 202	AR72.12-P-1910E
		Model 210 Do not remove crank window, set down in door.	AR72.12-P-1910F
7	Remove window guide rail	Installation:  Coat with solution of soap and water
8	Unscrew screws (2 and 3)
9	Remove window stay	Avoid damaging paint.
10	Pull fixed window (4) out toward front together with rubber frame (5)	Before installing rubber frame (5) coat with solution of soap and water
11	Install in reverse order
