Removing and installing crank operated window in rear door - AR72.12-P-1910F

MODEL 210

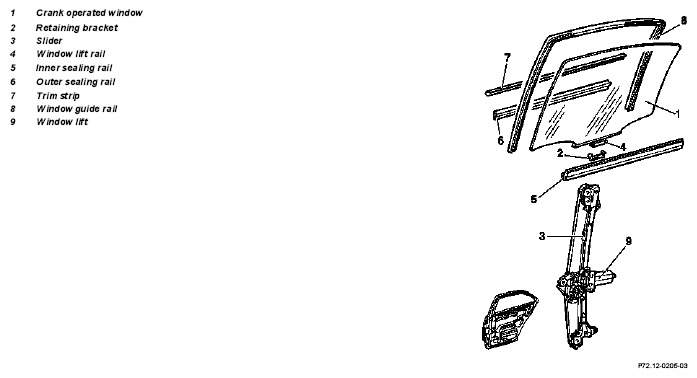

Fig 1: Identifying Crank Operated Window In Rear Door Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Remove door liner on rear door		AR72.12-P-1010F
2	Remove foil on inner door panel in lower area	Before installing foil check crank operated window for easy motion
3	Remove sealing rail on inside		AR72.10-P-1600E
4	Remove sealing rail on outside		AR72.10-P-1700E
5	Unclip retaining bracket (2) on window lift rail (4)
6	Extend crank operated window (1) toward rear out of slider (3) together with window lift rail (4) and set down inside door
7	Remove window guide rail (8)	Coat with solution of soap and water when installing
8	Remove stationary window in rear door	Only remove window stay	AR72.12-P-1970E
9	Remove crank operated window (1) upward out of window shaft
10	Reinstall in opposite order
