Replace bottom radial shaft sealing ring on control head - AR46.20-P-0003AB

MODEL 210 with CODE (979) Special protection version with CODE (Z04) Light armoring with CODE (Z06) B6 armoring

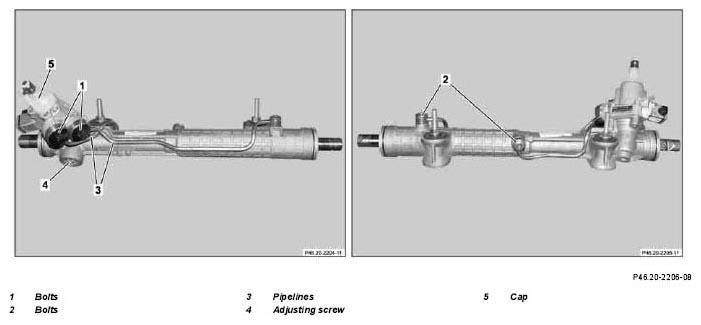

Fig 1: Identifying Radial Shaft Sealing Ring On Control Head Components (1 Of 2)
G04625139Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

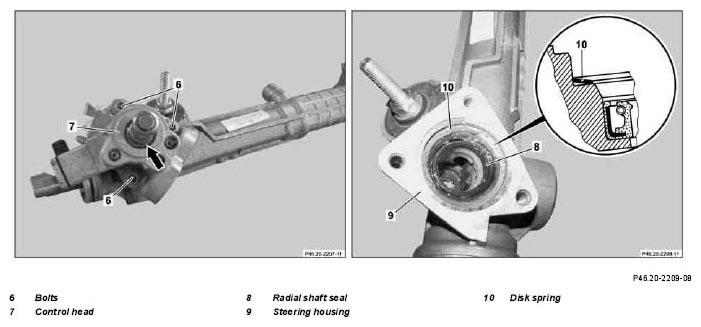

Fig 2: Identifying Radial Shaft Sealing Ring On Control Head Components (2 Of 2)
G04625140Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

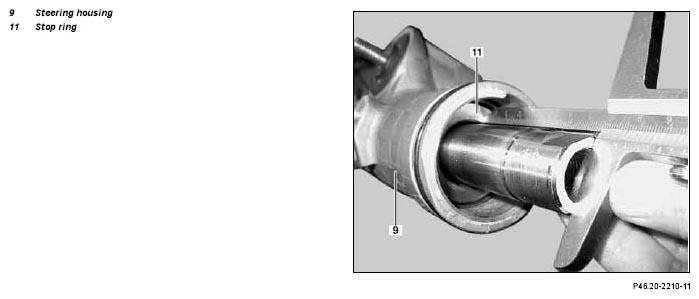

Fig 3: Identifying Steering Housing And Stop Ring
G04625141Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

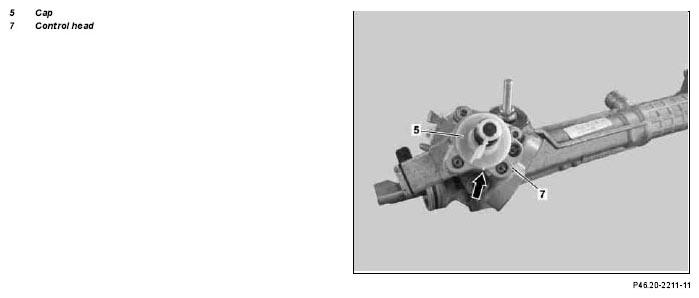

Fig 4: Identifying Cap And Control Head
G04625142Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVING Remove
DANGER Risk of death.  Death may result if vehicle slips or topples from the lifting platform. Align vehicle between the columns of the hydraulic hoist and position the four support plates below the hoist support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
1 Remove rack-and-pinion steering   AR46.20-P-0600A
2 Mount the rack-and-pinion steering in the fixture for locating the steering housing NOTESWarning!
For the following work attention should be paid to extreme cleanliness in the workplace while carrying out the repair!
Only the specified tool may be used! Before starting the repair, remove loose contamination on the steering gear without using cleaning agent, otherwise the steering may become damaged.
    SPECIAL TOOL Steering gear housing support Figure
3 Remove clamps on the inside of both bellows
4 Press outer clamps together IMPORTANT Move bellows towards the tie rod end.
5 Detach inner tie rod with axial joint NOTES Do not use force (hammer blows, severe leverage) as otherwise the tie rod with axial joint will be damaged.
IMPORTANT Detach the left and right side. Secure the steering rack to prevent it from twisting, counterhold with open wrench.
    SPECIAL TOOL Open-end wrench Figure
ASSEMBLING Dismantling
6 Unscrew screws (1)
7 Unscrew screw (2)
8 Remove the pipelines (3)
9 Loosen adjusting screw (4) approx. 2 revolutions IMPORTANT Mark the position before loosening the adjusting screw (4).
10 Mount the sleeve on the control head side of the steering rack IMPORTANT The assembled sleeve does not always correspond with center position of the steering rack.
    SPECIAL TOOL Sleeve Figure
11 Remove covering cap (5)
12 Unscrew bolts (6)
13 Screw in studs NOTES (7) Stud bolts must be screwed in for removing the control head, otherwise radial shaft sealing ring and teeth faces can be damaged. (8)
IMPORTANT Studs can be shop-made (M8x50).
14 Rotate input shaft counterclockwise IMPORTANT Until the control head (7) releases from the steer jacket (9).
    SPECIAL TOOL Socket wrench Figure
15 Remove control head (7)
16 Remove spring washer (10)
17 Unscrew studs
18 Remove oil which has run in from the control head (7) from the rack-and-pinion steering IMPORTANT Turn rack-and-pinion steering with opening facing downwards and allow oil to drain out. In order to rule out contamination, do not use any cleaning agent, shop towels or cleaning cloths.
19 Remove rotary shaft seal (8) NOTES Do not position puller on threads or too far inward to prevent damage to threads and/or O-ring seat.
IMPORTANTInstallation:  Pay attention to correct installation position of radial shaft sealing ring (8).
    SPECIAL TOOL Puller, dia. 28-37 mm Figure
    SPECIAL TOOL Countersupport Figure
ASSEMBLING Assembling
20 Grease outer surface of radial shaft sealing ring (8) IMPORTANT Apply grease with fingers, do not use other aid
21 Drive in radial shaft sealing ring (8) NOTES Pay attention to correct seating of the drift and guide sleeve, otherwise the radial shaft sealing ring (8) will be damaged.
IMPORTANT Pay attention to the correct installation position of the radial shaft sealing ring (8).
    SPECIAL TOOL Drift Figure
    SPECIAL TOOL Guide sleeve Figure
22 Grease inner lip of radial shaft sealing ring (8) IMPORTANT Apply grease with fingers. Do not use any other aids.
23 Insert spring washer (10) IMPORTANT Insert disk spring (10) with the curvature towards the steer jacket (9).
24 Screw in studs NOTES The studs must be screwed in to install the control head (7) in order to avoid damaging the radial shaft sealing ring (8) and tooth flanks.
25 Mount sleeve on the steering rack on the side facing away from the control head IMPORTANT The installed sleeve does not always immediately correspond the rack center position.
26 Push the control head (7) in as far as possible IMPORTANT Replace O-ring.
27 Rotate input shaft clockwise NOTES Turn carefully! Teeth faces can be damaged.
IMPORTANT Rotate clockwise until the input shaft bearing is located in the guide in the steering housing (9).
    SPECIAL TOOL Socket wrench Figure
28 Unscrew studs
29 Screw in screws (6) IMPORTANT Screw in several steps in order to prevent tilting over.
    TORQUE SPECIFICATION *BA46.20-P-1009-01A
30 Move steering rack into center position IMPORTANT Detach sleeve from the steering rack. Find the center position using a depth gauge. Bring both sides of the end of the steering rack to the same dimension relative to the stop ring (11) in the steering housing (9).
31 Grease the gap between the input shaft and control head (7) (arrow) IMPORTANT Apply grease with fingers. Do not use any other aids.
32 Push on cap (5) IMPORTANT The marking on the cap (5) must match the marking on the control head (7) (arrow).
33 Install pipelines (3) IMPORTANT Replace all O-rings.
    TORQUE SPECIFICATION *BA46.20-P-1010-01A
    TORQUE SPECIFICATION *BA46.20-P-1011-01A
34 Set play between thrust piece and steering rack   AR46.20-P-0601A
35 Check rack for easy motion by turning manually.
INSTALLING Install
36 Mount inner tie rod with axial joint NOTES Do not use force (hammer blows, severe leverage) as otherwise the tie rod with axial joint will be damaged.
IMPORTANT Mount the left and right side. Secure the rack to prevent it from twisting, counterhold with open wrench.
    SPECIAL TOOL Open-end wrench Figure
    TORQUE SPECIFICATION *BA46.40-P-1003-01A
37 Compress clamps on the outside IMPORTANT Move bellows towards steering housing (9).
38 Install inner clamps of the two bellows IMPORTANT Replace clamps.
39 Detach rack-and-pinion steering from the fixture for locating the steering housing
    SPECIAL TOOL Steering gear housing support Figure
DANGER Risk of death.  Death may result if vehicle slips or topples from the lifting platform. Align vehicle between the columns of the hydraulic hoist and position the four support plates below the hoist support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
40 Install rack-and-pinion steering   AR46.20-P-0600A
41 Measure vehicle electronically, adjust toe of front and rear axle   AR40.20-P-0200FB
DANGER Risk of accident  as vehicle may start off by itself with the engine running. Risk of injury  as working around the engine during start-up or while running may result in contusions and burns Secure vehicle to prevent it from moving. Wear closed and snug-fitting work clothes.
Do not grasp hot or rotating parts.		 AS00.00-Z-0005-01A
42 Check rack-and-pinion steering for proper function. IMPORTANT Rotate steering wheel from lock to lock several times. Check oil level in steering. Check leaktightness of steering. Check function of steering during low-speed and highspeed cornering.
TORQUE SPECIFICATION Steering gear

Number Designation Model 210
BA46.20-P-1009-01A Timing case to rack-and-pinion steering NM 21
BA46.20-P-1010-01A Pipeline to timing case NM 60
BA46.20-P-1011-01A Pipeline to rack-and-pinion steering NM 20
TORQUE SPECIFICATION Track rod

Number Designation Model 210
BA46.40-P-1003-01A Inner track rod with axial joint to rack and-pinion joint NM 110
Fig 5: Identifying Steering Gear Housing Support (203 589 04 31 00)
G04625143Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 6: Identifying Open-End Wrench (201 589 00 01 00)
G04625144Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 7: Identifying Sleeve (210 589 00 14 00)
G04625145Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 8: Identifying Puller Dia. 28-37 Mm (000 589 28 33 00)
G04625146Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 9: Identifying Countersupport (000 589 33 33 00)
G04625147Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 10: Identifying Drift (210 589 05 15 00)
G04625148Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 11: Identifying Guide Sleeve (210 589 01 14 00)
G04625149Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 12: Identifying Socket Wrench (203 589 04 31 03)
G04625150Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
