Removing, disassembling and installing rear shelf - AR68.30-P-4580FB

MODEL 210 with CODE (979) Special protection version with CODE (Z04) Light armoring with CODE (Z06) B6 armoring

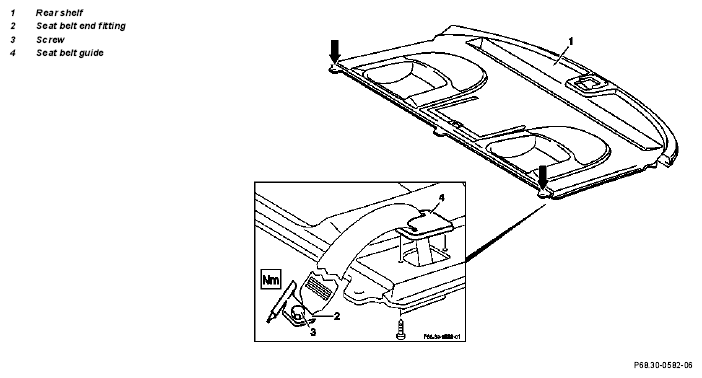

Fig 1: Identifying Rear Shelf Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Remove rear seat and rear backrest		AR91.12-P-1700F
2	Remove rear head restraints		AR91.16-P-1770E
3	Remove paneling on C-pillar		AR68.30-P-4490FB
4	Unhook curtain on headliner	Curtain is fastened in headliner rail with two clips
5	Remove center high-mounted stop lamp		AR82.10-P-5375EB
6	Unscrew seat belt end fitting (2)		*BA91.40-P-1001-01A
7	Unclip clips (arrow) on left and right
8	Unscrew bolts on seat belt guide (4)	Pull rear shelf (1) forward slightly until bolts are accessible
9	Guide seat belt and seat belt guide through rear shelf (1)
10	Remove rear shelf (1) toward front
11	Reinstall in opposite order

Seat belts/emergency tensioning retractors
