Removing and installing center high-mounted stop lamp - AR82.10-P-5375EB

MODEL 210.0 /6

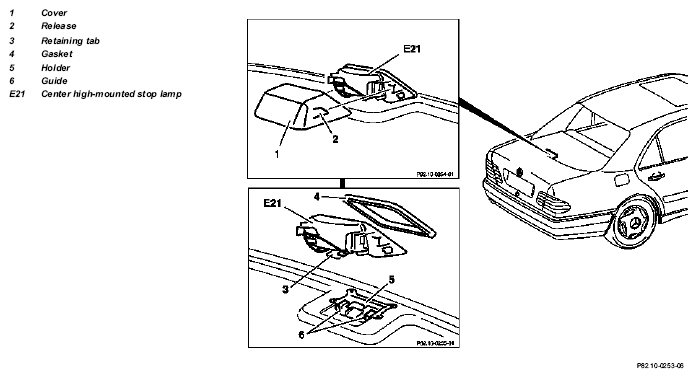

Fig 1: Identifying Center High-Mounted Stop Lamp Components - Model 210.0 /6

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Remove cover (1) on center high-mounted stop lamp (E21)	For this purpose press in catch (2) on left and right and simultaneously pull cover (1) forward
2	Remove center high-mounted stop lamp (E21) from holder (5)	For this purpose press retaining tab (3) up and simultaneously pull center high- mounted stop lamp forward Installation:  Insert center high-mounted stop lamp (E21) into the two guides (6) on the holder (5) and push toward rear until gasket (4) makes uniform tight contact with the rear window.
3	Remove holder (5) from rear shelf and disconnect electrical connector
4	Reinstall in opposite order
