Disassembling and assembling glove box cover - AR68.10-P-1220F
MODEL 210

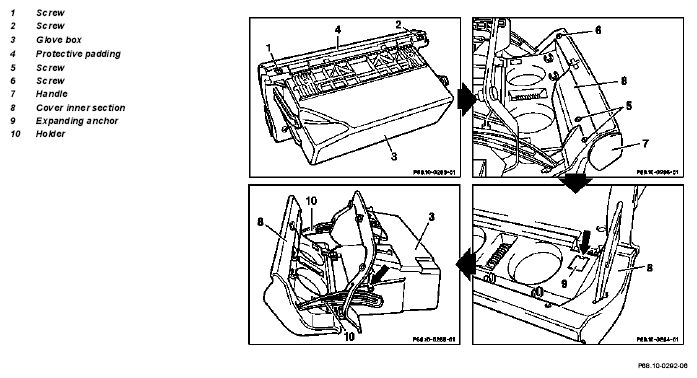

| Disassembly and assembly | |||
| 1 | Glove box removed | AR68.10-P-1400F | |
| 2 | Unscrew screws (1 and 2) | ||
| 3 | Unscrew screws (5 and 6) | ||
| 4 | Remove handle (7) | ||
| 5 | Unclip protective padding (4) and remove from cover inner section (8) | ||
| 6 | Pull out expanding anchors (9, 2 each) on cover hinge | ||
| 7 | Unhook left and right holders (10) on stop bolt (arrow) downwards | ||
| 8 | Pull cover inner section (8) off of hinge | ||
| 9 | Extend holder (10) on glove box | ||
| 10 | Reassemble in opposite order | ||
| 11 | Adjust glove box cover | AR68.10-P-1300F |
