Adjusting glove box cover - AR68.10-P-1300F

MODEL 210

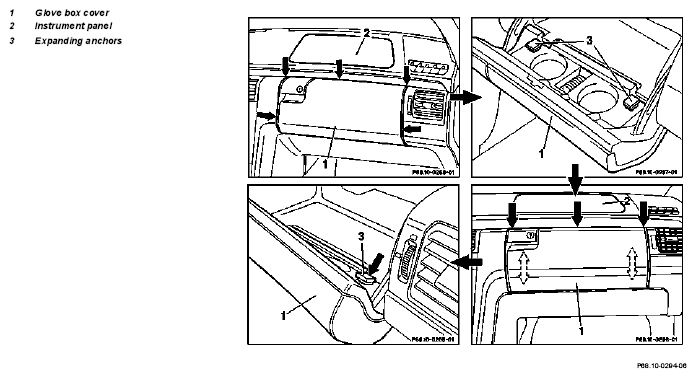

Fig 1: Locating Glove Box Cover, Instrument Panel And Expanding Anchors

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Adjustment
	During entire procedure ensure that transition and gap width between glove box cover (1) and instrument panel (2) are uniform all the way around (arrows)
1	Pull both expanding anchors (3) out of glove box cover (1) with small screwdriver
2	Close glove box cover (1), adjust horizontal gap and transitions (arrows)	The glove box cover can be adjusted in the hinges in increments
3	Carefully open glove box cover (1) (to first stop only) and press in expanding anchors (3)
4	Check side gap and adjust, if necessary	Differences in the side gap can be corrected slightly by loosening the mounting screws (6 each) for the glove box and then moving
5	Check for proper function and easy motion
