Remove/install belt buckle (front seat) - AR91.40-P-1515E

MODELS 202, 210

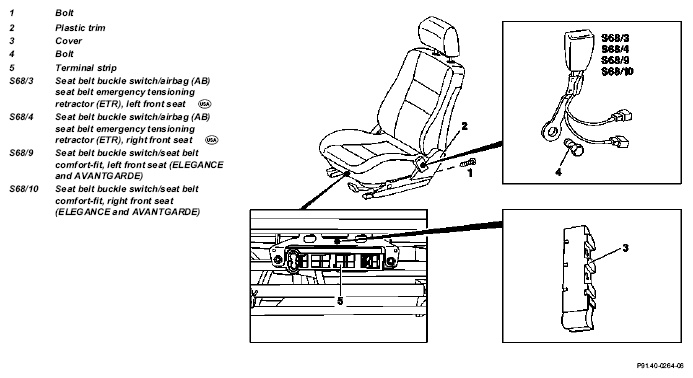

Fig 1: Identifying Belt Buckle (Front Seat) Remove/Install Components - Models 202, 210

G04632987

	Remove/Install
	Instructions for performing repair, body work and welding on vehicles with airbags and ETR units	Models 124, 129 up to 30.6.93, 140, 202 up to 30.6.93	AH91.00-P-0002-01A
		Models 129 as of 1.7.93, 163, 168, 170, 202 as of 1.7.93, 208, 210, 463, 638, 901, 902, 903, 904	AH91.00-P-0002-01B
1	Remove front seat	Model 202	AR91.10-P-1000E
		Model 210	AR91.10-P-1000F
2	Unscrew screw (1) and remove plastic trim (2)	Only and model 210 ELEGANCE and AVANTGARDE
3	Undo cable straps of seat belt buckle switch cables (S68/3, S68/4 and S68/9, S68/10) on underside of seat	Only and model 210 ELEGANCE and AVANTGARDE
4	Push off cover (3) of terminal strip (5) and remove plug socket (arrow)	Only and model 210 ELEGANCE and AVANTGARDE
5	Unscrew screw (4) and remove seat belt buckle		*BA91.40-P-1003-01A
			Figure
6	Install in the reverse order

TORQUE SPECIFICATION

Seat belts/emergency tensioning retractors

Number	Designation		Model 202, 208.3	Model 208.4	Model 210
BA91.40-P-1003-01A	Screw/nut on front seat belt buckle	NM	35	35	35

Special tools

Fig 2: Identifying Torque Wrench (001 589 66 21 00)

G04632988
