Removing and installing front seats - AR91.10-P-1000E

MODEL 202

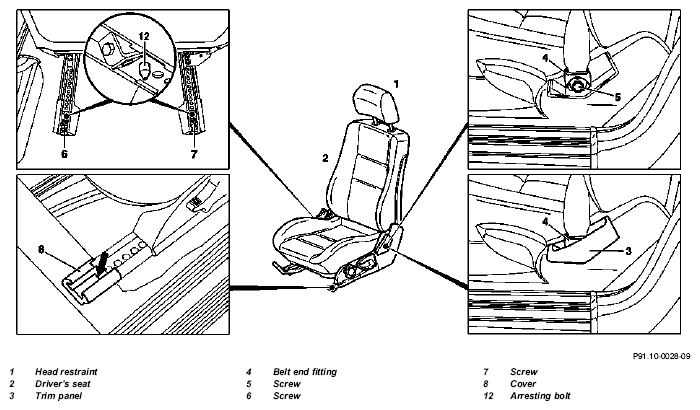

Fig 1: Identifying Front Seats Remove/Install Components - Model 202 (1 Of 2)

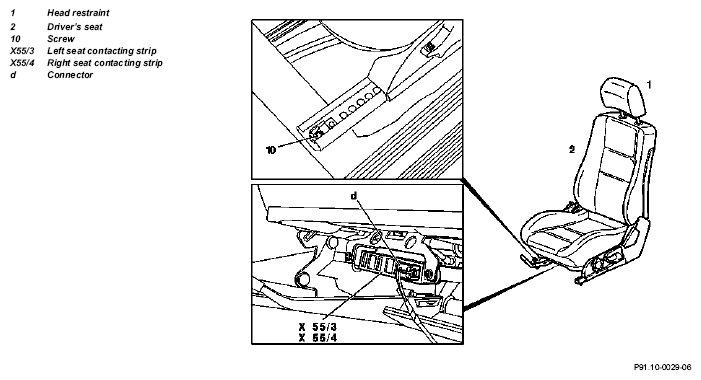

Fig 2: Identifying Front Seats Remove/Install Components - Model 202 (2 Of 2)

	Removal, installation
1	Remove head restraint (1)
2	Move driver's seat (2) toward front
3	Pull off cover (3) on belt end fitting (4)
4	Unscrew screw (5) on belt end fitting (4)	When installing belt end fitting screw on so that it can move.	*BA91.40-P-1001-01A
5	Unscrew screws (6 and 7) on rear seat rails	Use E12 external Torx socket wrench attachment.	*BA91.10-P-1001-01A
			Fig 3
6	Move front seat (2) toward rear
N	Pull off covers (8 and 9) toward front	To remove lift lug (arrow) with screwdriver.
8	Unscrew screws (10 and 11) at the front seat rails	Use E12 external Torx socket wrench attachment.	*BA91.10-P-1001-01A
			Fig 3
9	Disconnect connector (d) from contacting strip (X55/3) on seat cushion frame at front
10	Lift and remove front seat (2)	When installing insert arresting bolts (12) into mounting hole in rear consoles.
11	Install in opposite order

FRONT SEATS

Number	Designation		Model 202
BA91.10-P-1001-01A	Screw on seat rail	Nm	50

SEATBELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Models 202, 208.3
BA91.40-P-1001-01A	Screw on belt end fitting	Nm	35

Fig 3: Identifying Torx Bit Set (000 589 01 10 00)
