Removing and installing heater housing - AR83.25-P-1000E
MODEL 202
| Removal, installation | |||
| Risk of injury to skin and eyes from scalding with hot coolant which splashes out. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage bottles. Wear protective gloves, protective clothing and eye protection. |
AS20.00-Z-0001-01A | |
| 1 | Drain coolant | Engine 104 | ra20001040100x |
| Engine 111 | AR20.00-P-1142HG | ||
| Engine 601 | ra20006010010x | ||
| Engines 604, 605 | AR20.00-P-1142HW | ||
| 2 | Remove cover on left and right air inlets | AR83.25-P-1400E | |
| 3 | Remove air inlet | AR83.25-P-1401E | |
| 4 | Remove water collector | up to 31.8.95 | AR83.25-P-1402E |
| as of 1.9.95 | AR83.25-P-1402K | ||
| 5 | Remove series resistor for heater blower | ||
| 6 | Pull off heater feed and return hoses, loosen 3 hose clamps | ||
| N | Remove instrument panel | AR68.10-P-1000E | |
| 8 | Remove center console | ||
| 9 | Remove floor covering on left and right | ||
| 10 | Remove passenger airbag Vehicles with passenger airbag (code 291). | AR91.60-P-0680E | |
| 11 | Remove jacket tube | ra46001247700x | |

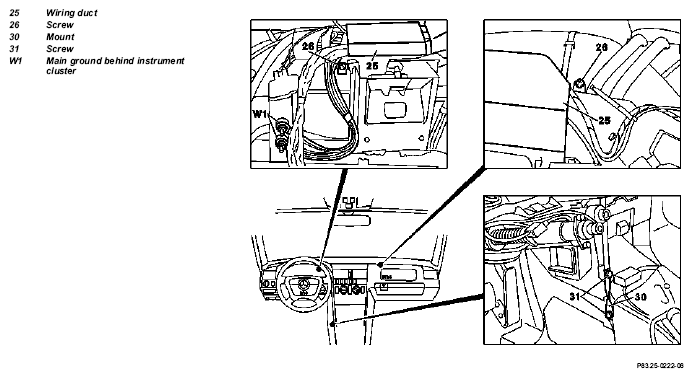

| 12 | Loosen wiring duct (25), unscrew screws (26) | ||
| 13 | Remove mount (30), unscrew screws (31) | ||

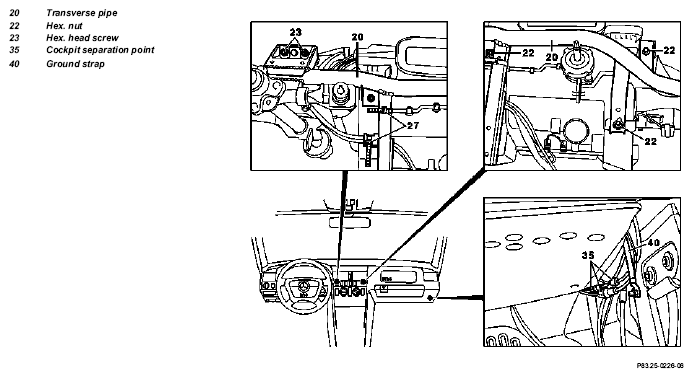

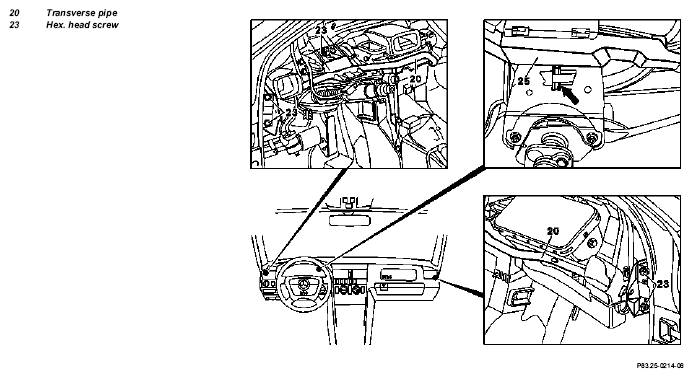

| 14 | Remove transverse pipe (20) | ||
| 15 | Disconnect electrical leads from ground point W1 | ||
| 16 | Open cable straps (27) | ||
| 17 | Remove rear air ducts on left and right | ||
| 18 | Disconnect vacuum lines at cockpit separation point (35) | ||
| 19 | Remove ground strap (40) on right | ||
| 20 | Separate blower motor connector | ||
| 21 | Remove air ducts to side nozzles on left and right | ||
| 22 | Remove heater housing | ||
| 23 | Install in opposite order |
PARTS ORDERING NOTE
| Number | Designation | Quantity | Part No. |
|---|---|---|---|
| 1 | Parts kit | 1 | 140 830 01 27 |
