Removing and installing front passenger airbag - AR91.60-P-0680E

MODEL 202 with CODE (291b) Airbags for driver and front passenger (if driver airbag standard-only for front passenger)

MODEL 210

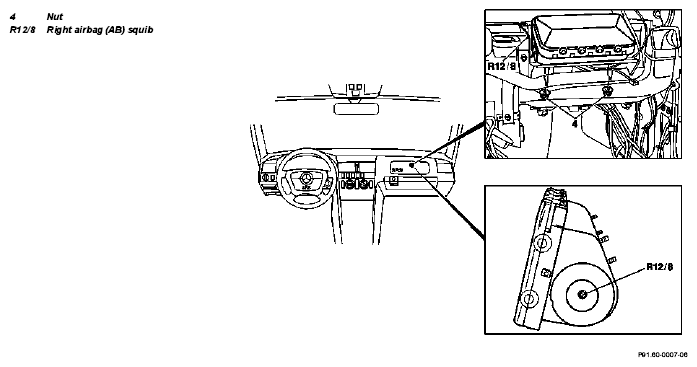

Fig 1: Identifying Front Passenger Airbag Remove/Install Components (Model 202)

Model 210

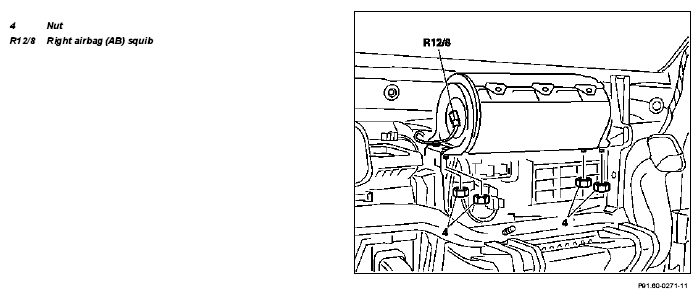

Fig 2: Identifying Front Passenger Airbag Remove/Install Components (Model 210)

	Removal, installation
	Injury hazard  when testing or repairing airbags or emergency tensioning retractors	Store airbags with opening surface pointing up, do not expose to temperatures above 100 °C. Interrupt electric circuit when working on these units and disconnect test connector/connector for airbag (AB) with emergency tensioning retractor (X11/13).	AS91.00-Z-0001-01B
	Injury hazard  when testing or repairing airbags or emergency tensioning retractors.	Store airbags with opening surface pointing up, do not expose to temperatures above 100 °C. Interrupt electric circuit when working on these units.	AS91.00-Z-0001-01A
	Evaluation of airbags and emergency tensioning retractors on accident vehicles	Model 129 as of 1.7.93, 163, 168, 170, 202 as of 1.7.93, 208, 210, 463, 638, 901, 902, 903, 904	AH91.00-P-0006-01B
	Important instructions for performing repair, body work and welding on vehicles with airbags and emergency tensioning retractors	Models 124, 129 up to 30.6.93, 140, 202 up to 30.6.93	AH91.00-P-0002-01A
		Model 129 as of 1.7.93, 163, 168, 170, 202 as of 1.7.93, 208, 210, 463, 638, 901, 902, 903, 904	AH91.00-P-0002-01B
	Legal regulations on handling and storing airbags and emergency tensioning retractors	Models 124, 129, 140, 163, 168, 170, 202, 208, 210,314, 316, 318, 463, 638, 901, 902, 903, 904, 950, 952, 953, 954	AH91.00-P-0004-01A
1.1	Disconnect ground lead from battery	Model 202 up to 30.6.93	AR54.10-P-0003A
1.2	Remove ignition key	Model 202 as of 1.7.93 and model 210
2	Disconnect SRS test connector (X11/13)
3	Remove instrument panel	Model 202	AR68.10-P-1000E
		Model 210	AR68.10-P-1000F
4	Disconnect connector from squib (R12/8) on gas generator	Installation:  Connector should catch audibly
5	Screw off nuts (4) on passenger airbag
6	Remove passenger airbag	If the airbag is replaced, dispose of the defective airbag properly. ↓
	Instructions on disposal of airbags and emergency tensioning retractors	All models	OS91.00-P-0001-01A
	Rendering airbags unusable		AR91.60-P-0611A
7	Install in opposite order	After the passenger airbag has triggered it is necessary to install a new instrument panel
8	Perform diagnosis
