Removing and installing water collector - AR83.25-P-1402E

MODEL 202 up to 31.8.95

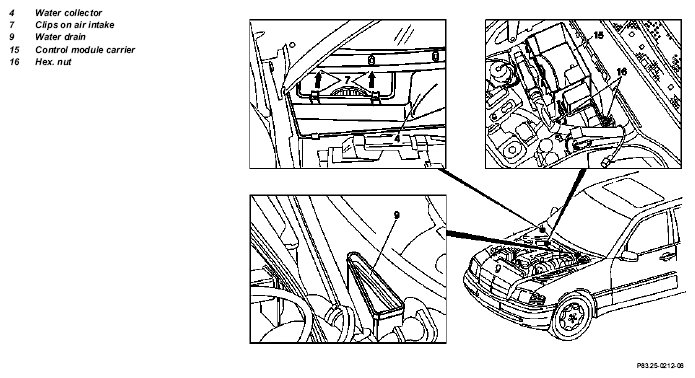

Fig 1: Identifying Water Collector Remove/Install Components - Model 202 Up To 31.8.95 (1 Of 3)

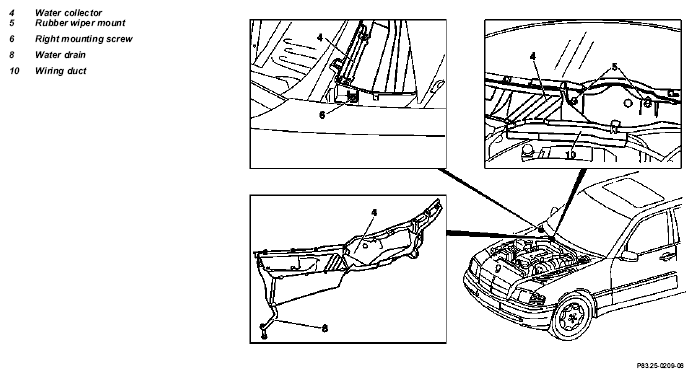

Fig 2: Identifying Water Collector Remove/Install Components - Model 202 Up To 31.8.95 (2 Of 3)

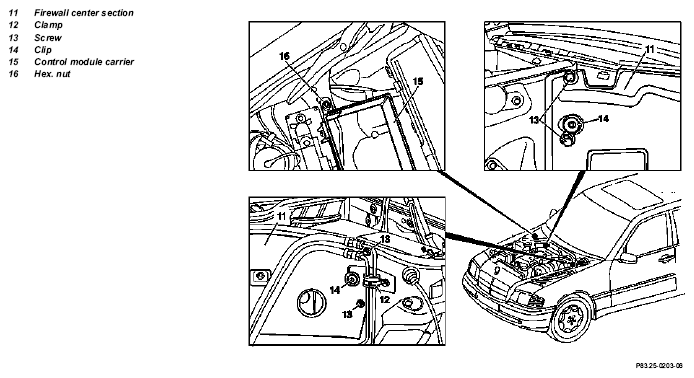

Fig 3: Identifying Water Collector Remove/Install Components - Model 202 Up To 31.8.95 (3 Of 3)

	Removal, installation
1	Remove cover on left and right air intake		AR83.25-P-1400E
2	Remove wiper system		AR82.30-P-6400E
3	Unscrew rubber mount (5)
4	Unclip clips (7)
5	Unscrew screw (6)
6	Unhook wiring duct (10)
7	Detach fuel lines, remove clamp (12)
8	Remove firewall center section (11), unscrew screws (13), press off clips (14)	When installing the firewall center section ensure that the rubber grommet for the heater feed hose is seated properly.
9	Remove control module carrier (15), unscrew hex. nuts (16)
10	Remove water collector (4)	When installing the water collector (4) ensure that the water drains (8 and 9) are properly seated.
11	Reinstall in opposite order
