Removing and installing front door control module - AR72.29-P-1000E

MODEL 202 as of 1.6.97, 210 as of 1.3.97

Illustrated on model 202

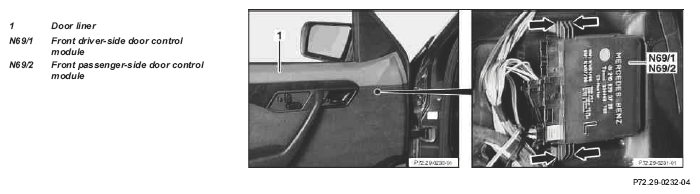

Fig 1: Identifying Front Door Control Module Components - Illustrated On Model 202

	Removal, installation
1	Remove door liner (1)	Model 202	AR72.10-P-1000E
		Model 210	AR72.10-P-1000F
2	Release and disconnect electrical connectors from front driver-side door control module (N69/1) and front passenger-side door control module (N69/2)	Use connection and disconnection tool on electrical connectors if necessary
3	Press plastic bolts at top and bottom of front driver-side door control module (N69/1) or front passenger-side door control module (N69/2) together (arrows)
4	Remove front driver-side door control module (N69/1) or front passenger-side door control module (N69/2)	Installation:  Insert retaining lugs on front side of door control module to inner door panel.
5	Reinstall in opposite order
6	Adjust side windows	See Owner's Manual
