Removing and installing door liner on front door - AR72.10-P-1000E
MODEL 202 up to 30.6.97

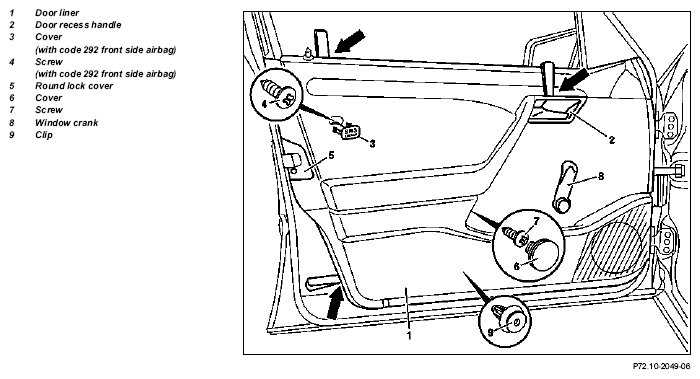

Fig 1: Identifying Door Liner On Front Door Remove/Install Components - Model 202 Up To 30.6.97 (1 Of 3)
Fig 2: Identifying Door Liner On Front Door Remove/Install Components - Model 202 Up To 30.6.97 (2 Of 3)
Fig 3: Identifying Door Liner On Front Door Remove/Install Components - Model 202 Up To 30.6.97 (3 Of 3)
MODIFICATION NOTES
| 8.9.98 | Cover and screw added (with code 292 front side airbag) Work sequence modified | Step 4 |
| Removal, installation | |||
| 1 | Open crank window | ||
| 2 | Remove window crank (8) | AR72.10-P-1100GV | |
| 3 | Press off door handle recess (2) with installation wedge. | Figure | |
| 4 | Unclip cover (3) and unscrew screw (4) | With code 292 (front side airbag) | |
| 5 | Unscrew screw on round lock cover (5) and remove round lock cover downwards | ||
| 6 | Press cover (6) off below door pocket and unscrew screw (7). | ||
| 7 | Unscrew screw (10) in area of inside door opener. | ||
| 8 | Press door liner (1) off of inner door panel at bottom, front and rear using installation wedge | Figure | |
| 9 | Pry top of the door liner (1) upwards out of the clips at the sealing rail using installation wedge and at the same time pull away from the inner door panel. | Figure | |
| 10 | Open retainer (11) on linkage (12) and unhook linkage (12). | Inside door opener with control cable on electrically adjustable driver's seat (code 221a). | |
| 11 | Disconnect electrical connections on door liner | ||
| 12 | Put down door liner (1) | ||
| 13 | Check foil and clips on inner door panel and replace if necessary | *BR00.45-Z-1004-02A | |
| 14 | Check clips (9) on door liner (1) and replace if necessary | ||
| 15 | Reinstall in reverse order |
Special tool
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1004-02A | Adhesives | A 001 989 30 71 |
