Removing and installing door liner on front door - AR72.10-P-1000F
MODEL 210
Modification notes
| 29.7.98 | Cover and screw added on vehicles with SRS (side airbag) Sequence of operations revised | Work step 3 | AR72.10-P-1000F |
| Removing, installing | |||

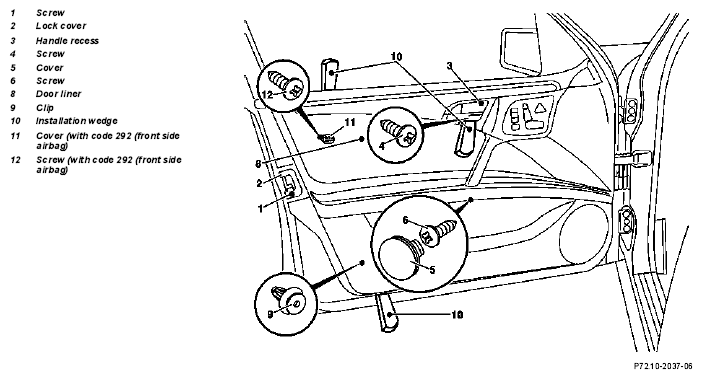

| 1 | Press off handle recess (3) using assembly wedge. | Figure | |
| 2 | Unscrew screw (4) in the area of the interior door control | ||
| 3 | Unclip cover (11) and unscrew screw (12) | On vehicles with front side airbag (with code 292) | |
| 4 | Unscrew screw (1) on lock escutcheon (2) and remove lock escutcheon downwards | ||
| 5 | Press off cover (5) under armrest on door pocket and unscrew screw (6) | ||
| 6 | Unclip entrance lamp and disconnect electrical connection | ||
| 7 | Press door lining (8) off inner door panel at bottom, front and rear using assembly wedge | Figure | |
| 8 | Lift door lining (8) upwards off retaining clips at the top of the sealing rail using assembly wedge and at the same time pull away from the inner door panel | Figure | |
| 9 | Unhook control cable on interior door control | ||
| 10 | Pull electrical connections off door lining (8). | ||
| 11 | Put down door lining (8) | ||
| 12 | Check films and clips on inner door panel and replace if necessary. | *BR00.45-Z-1004-02A | |
| 13 | Check clips (9) on door lining (1) and replace if necessary | ||
| 14 | Install in reverse order |
Repair materials
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1004-02A | Adhesives | A 001 989 30 71 |
