Removing and installing exhaust system complete - AR49.10-P-7000D

ENGINE 104 in MODELS 124, 129, 140, 202

ENGINE 111 in MODELS 124, 202

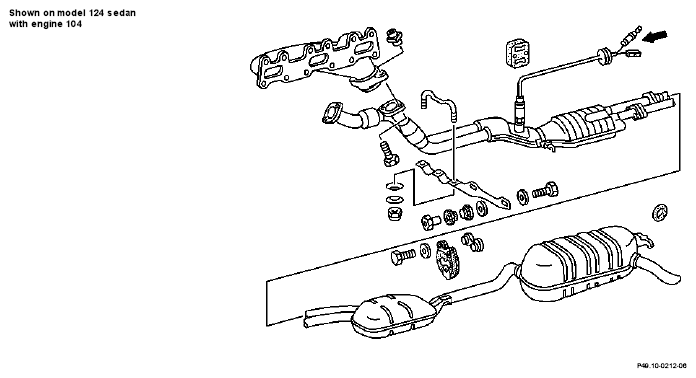

Fig 1: Identifying Exhaust System Complete Remove/Install Components - Model 124 Sedan With Engine 104

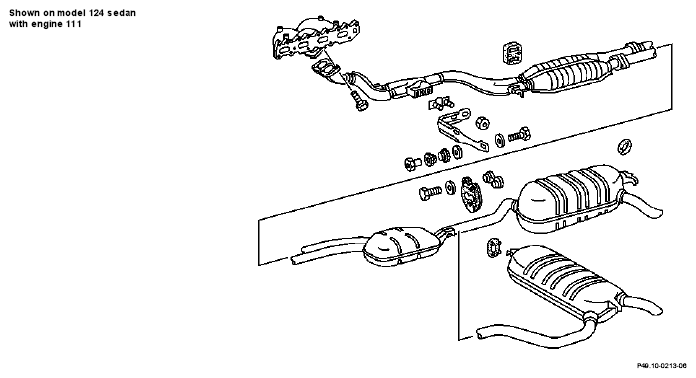

Fig 2: Identifying Exhaust System Complete Remove/Install Components - Model 124 Sedan With Engine 111

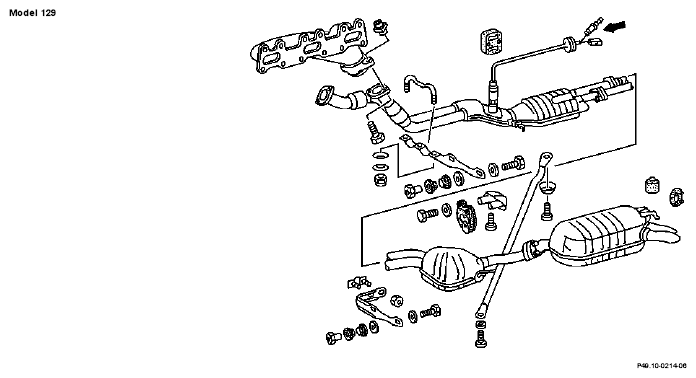

Fig 3: Identifying Exhaust System Complete Remove/Install Components - Model 129

Fig 4: Identifying Exhaust System Complete Remove/Install Components - Model 202 With Engine 104

Fig 5: Identifying Rubber Mount Clearance

	Removal, installation
1	Replace rivet nuts in exhaust manifold	if necessary	AR49.10-P-5531-01DA
2	Replace self-locking nuts, bolts and gaskets. Ensure the gaskets and flanges are correctly installed.	Use emery cloth to clean off combustion and corrosion residues at connection points
3	Pay attention to installation of the threaded plate		AR49.10-P-5531D
4	Pay attention to TWC thermocouple
5	Remove cross strut of left frame	Model 129
			*BA61.10-P-1001-01A
6	Install in reverse sequence	When attaching the exhaust system, ensure that the projection "a" of the bracket at rear muffler is not more than 3 - 5 mm at the rubber mount (18) (see fig.) when exhaust system is cold Model 202.028 E 36 AMG: pay attention to installation position and suspension of rear muffler, see ↓	*BA61.10-P-1001-01A
		Notes on installation position and suspension of rear muffler	AH49.10-P-1000-02A
	Notes re disposing of catalytic converters	On models with catalytic converter code 620a	OS49.10-P-1000-01A

FRAME FLOOR

Fig 6: Identifying Caulking Bolt (103 589 01 39 00)
