Remove/install rear axle suspension strut - AR32.31-P-0610A: Notes

MODEL 129 with CODE (216c) Adaptive damping system (ADS II) with electronic level control

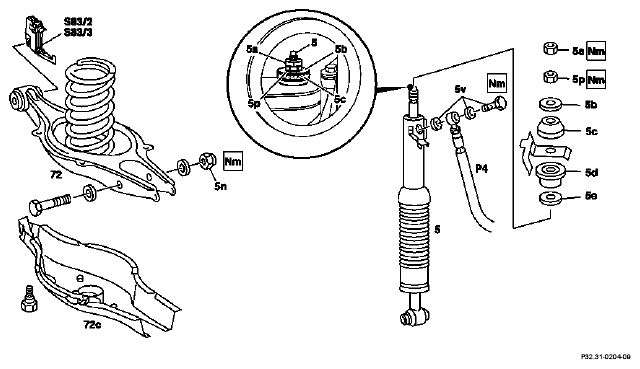

Fig 1: Identifying Rear Axle Suspension Strut Components

MODIFICATION NOTES

30.9.97

Control module and roll bar switch no longer required

Stage

7 BT91.59-P-0001-01A

	Remove/Install
1	Remove top spring strut mounting	The vehicle must be standing on its wheels for removing the top spring strut mounting. Counterhold spring strut (5) in wheel house.
		Nut (5p)	*BA32.31-P-1001-03A
		Nut (5a)	*BA32.31-P-1002-03A
2	Remove washer (5b) and rubber mount (5c)
3	Raise vehicle.
4	Detach rear wheels.		AP40.10-P-4050Z
	Risk of injury to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning from swallowing hydraulic fluid.	Release the pressure in the hydraulic system completely before starting any work on the system. Wear protective clothing and safety glasses.	AS00.00-Z-0013-01A
5	Empty pressure oil system at rear axle	Installation : Fill pressure oil system at front and rear axle	AR32.31-P-0630A
6	Disconnect pressure line (P4) at spring strut	Installation : Replace copper sealing rings on the banjo bolt (5v) Before tightening pressure line at spring strut ↓	*BA32.31-P-1004-03A
		Checking and setting distance between rear axle spring strut and wheel house	AR32.31-P-0610-01A
7	Remove roll bar switch (S83/2 or S83/3).		ra91001240860x
	Control module and roll bar switch no longer required		BT91.59-P-0001-01A
8	Remove spring link cover (72c)
9	Detach and remove spring strut (5) from spring link (72)	Installation : Extend suspension strut so that the suspension strut mount abuts the dome. Replace self-locking nut (5n.
			*BA32.31-P-1003-03A
	Inspect
10	Check rubber mounts (5c, 5d), disc (5e), spring strut mount and rubber sleeve for damage and cracks. Check ball joint for wear
11	Check spring strut for leaks.	A fine oil mist is permitted. If the joint socket is covered with oil ↓ replace the strut.
12	Install in the reverse order
13	Check distance and setting between the spring strut and the wheel house in the ready to drive state	If necessary, loosen spring strut mounting and correct position of spring strut.	AR32.31-P-0610-01A
14	Check roll bar system functions works correctly.		ra91001240830x
	Risk of injury when drilling gas-filled assemblies or components (gas filling cannot ignite)	Wear safety glasses and face mask.	AS00.00-Z-0006-01A
18	Dispose of shock-absorber strut		OS32.25-P-0120-01A

TEST VALUES FOR REAR AXLE SPRING STRUT

Number	Designation				Model 129 with electronic level control / ADS II
BE32.31-P-1001-01A	Distance between pressure hose bracket on spring strut tube and wheel house	at rebound	left	mm	11...14
			right	mm	11...14
			Fig. see		AR32.31-P-0610-01A
BE32.31-P-1002-01A	Distance between pressure hose bracket on spring strut tube and wheel house	ready-to-drive (vehicle on its wheels)	Left	mm	16...19
			right	mm	16...19
			Fig. see		AR32.31-P-0610-01A

REAR AXLE LEVEL CONTROL SPRING STRUT

Number	Designation		Model 129 with electronic level control system / ADS II
BA32.31-P-1001-03A	Nut of spring strut of level control to frame floor (Reference value)	NM	17
BA32.31-P-1002-03A	Jam nut, level control system spring strut to frame floor (reference value)	NM	30
BA32.31-P-1003-03A	Self-locking nut, level control spring strut to spring link	NM	55
BA32.31-P-1004-03A	Banjo bolt of pressure pipe of level control to spring strut	NM	25
