Remove/install generator poly-V-belt pulley - AR13.22-P-5700EA
ENGINE 111.943/946/973 in MODEL 170
ENGINE 104.941, 111.920 /921 /941 /944 /945 /961 /974 /975, 601.913, 604.910 /915, 605.910 /960 in MODEL 202
ENGINE 111.944 /945 /975, 112.940 in MODEL 208
ENGINE 104.945 /995, 111.942 /970, 112.921 /941, 119.985, 602.982, 604.912 /917, 605.912, 606.912 /962 in MODEL 210
  |
Remove/Install |
|
|
| 1 |
Remove alternator |
Engine 112.940 in Model 208. |
AR15.40-P-5032EB |
| |
|
Engine 112.921 /941, 119.985 in Model 210. |
AR15.40-P-5032ED |
| |
|
Engine 104.945 /995, 111.942/970, 602.982, 604.912/917, 605.912, 606.912/962 in Model 210. |
AR15.40-P-5032F |
| |
|
Engine 104.941, 111.920/921 /941 /944 /945 /961 /974 /975, 601.913, 604.910/915, 605.910 /960 in Model 202, engine 111.944 /945 /975 in Model 208. |
AR15.40-P-5032EA |
| |
|
Engine 111.943 /946 /973 in Model 170. |
AR15.40-P-5032G |
| 2 |

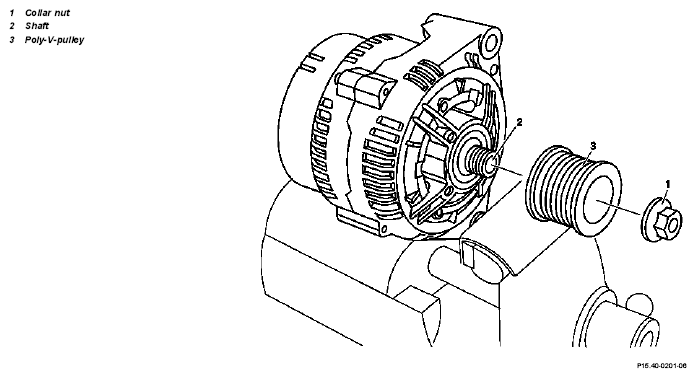

Unscrew collar nut (1) |
Multitooth for retaining the shaft (2) with a reversible ratchet. |
|
| |
|
 |
*BA15.40-P-1004-01A |
| |
|
|
*BA15.40-P-1004-01E |
| 3 |
Remove ribbed V-belt pulley (3) |
When replacing generators after mileages in excess of 100.000 km, simultaneously also replace the poly-V-belt pulley (3). |
|
| 4 |
Install in the reverse order |
|
|
Generator
| Number |
Designation |
Engine 104 |
Engine 111 |
Engine 112.91/92/94/953/954/955/96/97, 113.94/96/98 |
| BA15.40-P-1004-01A |
Collar nut to poly V-belt pulley |
Nm |
80 |
80 |
80 |
Generator
| Number |
Designation |
Engine 119 |
| BA15.40-P-1004-01A |
Collar nut to poly V-belt pulley |
Nm |
80 |
Generator
| Number |
Designation |
Engine 601 |
Engine 602 |
Engine 604 |
| BA15.40-P-1004-01E |
Collar nut to poly V-belt pulley |
Nm |
80 |
80 |
80 |
Generator
| Number |
Designation |
Engine 605 |
Engine 606 |
| BA15.40-P-1004-01E |
Collar nut to poly V-belt pulley |
Nm |
80 |
80 |
