Removing and installing regulator of generator - AR15.40-P-5760F

ENGINES 104.945 /995, 111.942 /970, 112.921 /941, 113.940, 119.985, 602.982, 604.912/917, 605.912, 606.912/962, 611.961 up to 31.5.99 in MODEL 210

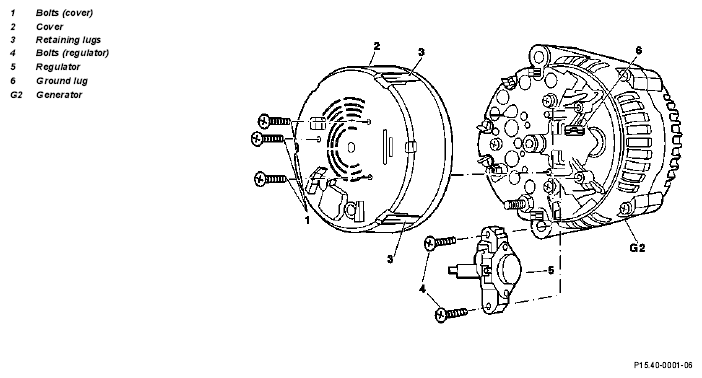

Fig 1: Identifying Regulator Of Generator Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing, installing
1	Remove generator	Engine 611 as of 1.6.99, 612, 613.	AR15.40-P-5032EC
		Engines 112, 113, 119	AR15.40-P-5032ED
		Engines 104, 111, 602, 604, 605, 606, 611 up to 31.5.99.	AR15.40-P-5032F
	Disassembling, assembling
2	Unscrew bolts (1)
3	Unclip cover (2) and remove	Push apart retaining lugs (3).
4	Unscrew bolts (4)
5	Remove regulator (5) from the side	Installation:  When inserting regulator (5) ensure that the ground lug (6) makes contact with the regulator.
6	Install in the reverse order
