Remove/install generator belt pulley - AR15.40-P-5710EA
ENGINE 111.943 /946 /958 /973, 112.947 in MODEL 170
ENGINE 104.941,111.920 /921 /941 /944 /945 /961 /974/975,112.910 /920, 113.944, 601.913, 604.910 /915, 605.910/960 up to 31.5.97 in MODEL 202
ENGINE 111.944 /945 /975, 112.940, 113.943 in MODEL 208
ENGINE 104.945 /995,111.942 /970,112.911 /921 /941,113.940,119.985, 602.982 up to 30.11.95, 604.912 /917, 605.912, 606.912 up to 31.5.97 in MODEL 210
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  |
Remove/Install |
|
|
| 1 |
Remove alternator |
Engine 111, 112 in model 170. |
AR15.40-P-5032G |
| |
|
Engine 104, 111, 601, 604, 605 in model 202, engine 111 in model 208, |
AR15.40-P-5032EA |
| |
|
Engine 104,111, 602, 604, 605, 606 in model 210. |
AR15.40-P-5032F |
| |
|
Engine 112 in model 202, engine 112, 113 model 208, |
AR15.40-P-5032EB |
| |
|
Engine 112, 113, 119 in model 210. |
AR15.40-P-5032ED |
| 2 |

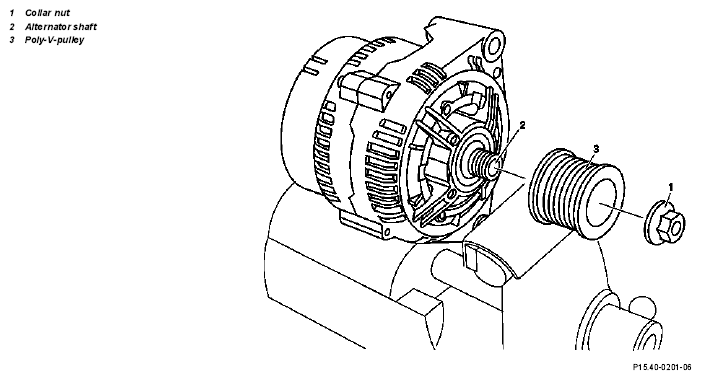

Unscrew collar nut (1) |
In order to retain the alternator shaft (2), multipoint head cap nut or Allen nut with a reversible ratchet. |
|
| |
|
Engine 104, 111, 112, 113, 119. |
*BA15.40-P-1004-01A |
| |
|
Engine 601, 602, 604, 605, 606. |
*BA15.40-P-1004-01E |
| 3 |
Remove ribbed V-belt pulley (3) |
When replacing generators after mileages in excess of 100 000 km (60,000 ml), replace the poly V-belt pulley at the same time. |
|
| 4 |
Install in the reverse order |
|
|
Generator
| Number |
Designation |
Engine 104 |
Engine 111 |
Engine 112.91/92/94/ 953/954/955/96/97, 113.94/96/98 |
| BA15.40-P-1004-01A |
Collar nut to poly V-belt pulley |
Nm |
80 |
80 |
80 |
Generator
| Number |
Designation |
Engine 119 |
Engine 120 |
| BA15.40-P-1004-01A |
Collar nut to poly V-belt pulley |
Nm |
80 |
80 |
Generator
| Number |
Designation |
Engine 601 |
Engine 602 |
Engine 602 |
| BA15.40-P-1004-01E |
Collar nut to poly V-belt pulley |
Nm |
80 |
80 |
80 |
Generator
| Number |
Designation |
Engine 605 |
Engine 606 |
| BA15.40-P-1004-01E |
Collar nut to poly V-belt pulley |
Nm |
80 |
80 |
