Remove/install chain tensioner - AR05.10-P-7800C

ENGINE 112.945 in MODELS 463.209 /232 /233 /244 /245 /250

ENGINE 112 in MODELS 163, 129

ENGINE 113.962 in MODELS 463.206 /240 /241 /247 /248 /249 /254

ENGINE 113 (except 113.965 /981) in MODELS 210, 208, 202, 163, 129

ENGINE 113.982 in MODELS 463.243 /246

Shown on ENGINE 112 in MODEL 129

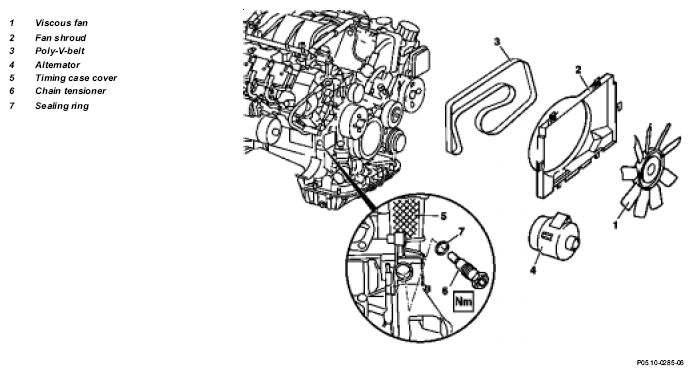

Fig 1: Identifying Chain Tensioner Components - Shown On Engine 112 In Model 129

	Remove/install
1	Remove viscous fan (1)	Right-hand thread!	AR20.40-P-5660C
2	Remove fan shroud (2).	On model 163 unscrew bolts at bottom of fan shroud.
		Model 463	AR20.40-P-6800V
3	Remove poly-V belt (3)	Installation: Lock tensioning device with a drift or pin (diameter 5 mm).	AR13.22-P-1202B
4	Remove alternator (4)	Model 129	AR15.40-P-5032CT
		Model 163	AR15.40-P-5032GH
		Model 208 with engine 113	AR15.40-P-5032EB
		Model 210 with engine 113	AR15.40-P-5032ED
		Model 463 with engine 112, 113	AR15.40-P-5032GV
5	Take chain tensioner (6) off timing case cover (5)	Installation:  Replace seal (7).
			*BA05.10-P-1001-01C
	Design of chain tensioner	Engines 112, 113	GF05.10-P-7801-01A
6	Install in the reverse order

Timing chain, chain tensioner
