Replacing timing chain - AR05.10-P-7601HA

ENGINES 604, 605, 606 /

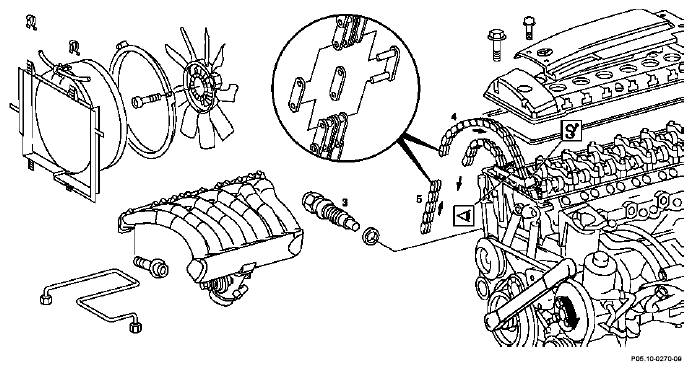

Fig 1: Identifying Timing Chain, Chain Tensioner And Rivet

Modification notes

1.3.96

Timing chain with press-fitted center plate replaces timing chain with moving center plate

Refer to step 4

	Removing, installing
1.1	Remove viscous fan coupling	Engine 604 in models 202, 210	AR20.40-P-5660HA
		Engines 605, 606 in models 124, 210 Engine 605 in model 202	AR20.40-P-5660HB
		Engine 606.964 in model 463	AR20.40-P-5660GG
2	Remove chain tensioner (3)	Replace seal of chain tensioner.	AR05.10-P-7800HA
3	Removing, installing cylinder head cover		AR01.20-P-5014HA
4	Separate timing chain (4, 5) and rivet	It is essential to remove the connecting link (04). It is only an assembly aid and is not suitable for engine operation.	AR05.10-P-7601-03A
			Figure
			Figure
			Figure
			Figure
			Figure
			Figure
			Figure
			Figure
			Figure
		Inspect camshaft sprocket for scores and pitting, if necessary ↓ replace camshaft sprocket
	Timing chain with modified center plate		BT05.10-P-0001-01A
5	Install in the reverse order

Fig 2: Identifying Case (602 589 00 98 00)

Fig 3: Identifying Chain Separating Tool (602 589 02 33 00)

Fig 4: Identifying Thrust Spindle (602 589 04 63 00)

Fig 5: Identifying Thrust Pins (602 589 04 63 01)

Fig 6: Identifying Riveting Tool (602 589 00 39 00)

Fig 7: Identifying Assembly Inserts (602 589 02 63 00)

Fig 8: Identifying Thrust Piece (602 589 03 63 00)

Fig 9: Identifying Holding Device (604 589 00 40 00)

Fig 10: Identifying Assembly Links (602 589 02 40 00)
