Checking camshaft timing - AR05.20-P-6015HB

ENGINE 604, 605, 606

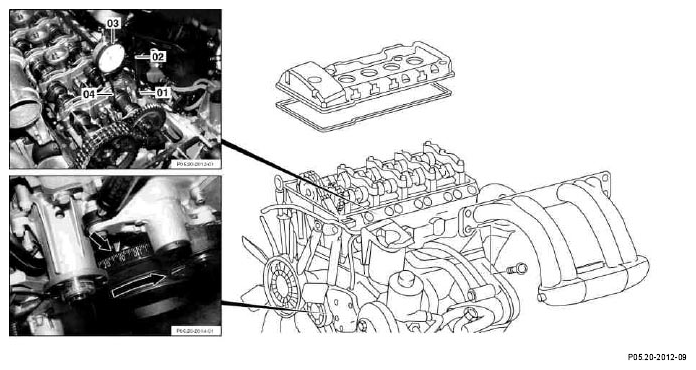

Fig 1: Identifying Camshaft Timing Assembly
G04623727IMPORTANTREMOVINGINSTALLINGINSPECTIMPORTANTIMPORTANTSPECIAL TOOLSPECIAL TOOLSPECIAL TOOLSPECIAL TOOLIMPORTANT
IMPORTANT When carrying out removal and installation work, it is sufficient if the basic position of the camshafts is checked.
Only check the timing of the camshafts if it is certain that the setting of the TDC pointer is correct, if necessary ↓
  AR05.20-P-6010HA
  inspect setting of TDC pointer bracket, correct   AR03.00-P-1101HA
REMOVINGINSTALLING Removing, installing
1 Remove cylinder head cover   AR01.20-P-5014HA
2 Remove viscous fan clutch Engine 605, 606 in model 124
Engine 606.961 in model 140
Engine 605 in model 202
Engine 605, 606 in model 210
AR20.40-P-5660HB
    Engine 604 in models 202, 210 AR20.40-P-5660HA
    Engine 606 in model 463 AR20.40-P-5660GG
INSPECT Checking
3 Check camshaft code numbers IMPORTANT The camshaft code numbers are shown at the thrust collar of the axial bearing *BE05.20-P-1001-01A
4 Attach dial gage holder (02) to the intake side of cylinder 1 to the cylinder head IMPORTANT Insert threaded pin into M6 hole of cylinder head cover attachment for this step.
Screw nut (01) (part no. 102 990 01 51) onto threaded pin.
Screw dial gage holder (02) onto nut (01) with magnetic foot removed.

    SPECIAL TOOL Threaded pin Figure
    SPECIAL TOOL Dial gage holder Fig 4
5 Position inlet cams of cylinder 1 so that only the base circles are making contact with the bucket tappets
6 Attach dial gage (03) with tracer pin (04) to dial gage holder SPECIAL TOOL Dial gage Fig 3
7 Set a preload of 3 mm and an angle of 90° of tracer pin (04) to bucket tappet
8 Use socket wrench bit to rotate the crankshaft in direction of rotation of engine until a valve stroke of 2 mm is indicated SPECIAL TOOL Socket wrench bit Fig 5
9 Check reading (arrow) at the vibration damper IMPORTANT At valve lift of 2 mm, the reading at the vibration damper should agree with the figure as in the table *BE05.20-P-1001-02A
10 Install in the reverse order
Camshaft code numbers

Number Designation Engine 604 Engine 605 except 605.960/962 Engine 606 except 606.961/962/964
BE05.20-P-1001-01A Camshaft code numbers inlet 11 11 08
exhaust 10 08 07
Camshaft code numbers

Number Designation Engine 605.960/ 962 Engine 606.961/ 962/964
BE05.20-P-1001-01A Camshaft code numbers inlet 14 11
exhaust 08 07
Timing

Number Designation Engine 604, 605.910/ 911/912, 606.910/ 912 Engine 605.960/ 962 Engine 606.961/ 962/964
BE05.20-P-1001-02A Timing of inlet valve/ exhaust valve at 2 mm valve stroke and used timing chain inlet valve opens after TDC ° CRA 12 12 12
closes after BDC ° CRA 13 0 0
BE05.20-P-1002-02A Timing of inlet valve/ exhaust valve at 2 mm valve stroke and used timing chain exhaust valve opens before BDC ° CRA 25 25 25
closes before TDC ° CRA 14 14 14
Fig 2: Identifying Threaded Pin (116 589 01 34 00)
