Checking, correcting setting of bracket of TDC sensor - AR03.00-P-1101HA

ENGINE 605, 606 in MODEL 124

ENGINE 606.961 in MODEL 140

ENGINE 604, 605 in MODEL 202

ENGINE 604, 605, 606.912 /962 in MODEL 210

ENGINE 606.964 in MODEL 463

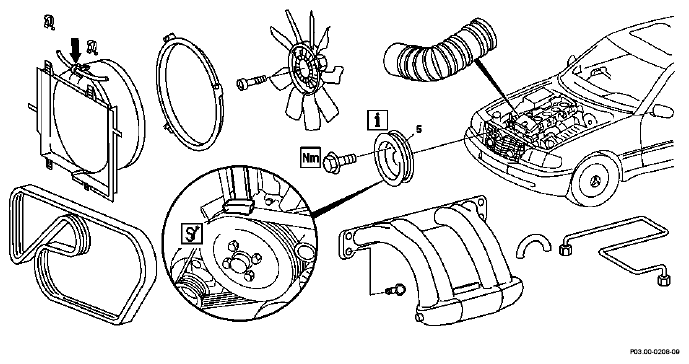

Fig 1: Identifying Correcting Setting Of TDC Sensor Bracket (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

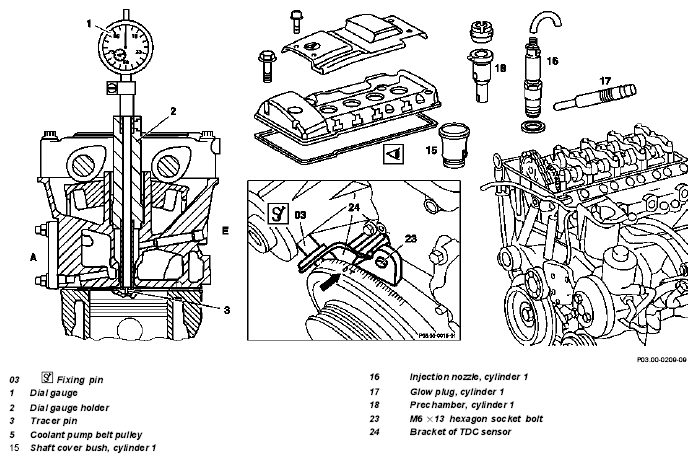

Fig 2: Identifying Correcting Setting Of TDC Sensor Bracket (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig. item, etc.	Work instructions
	Belt pulley of coolant pump	In order to slacken the bolts, fit on the poly V-belt at the belt pulley of coolant pump and attach counter-holder
			Fig 6
			*BA20.10-P-1001-01A
15	Bush of shaft cover, cylinder 1	If necessary, crank engine at crankshaft to remove.
		Installation:  replace O-rings.
16	Remove injection nozzle at cylinder 1		AR07.03-P-6830H
17	Remove glow plug at cylinder 1		AR15.20-P-4111H
18	Remove prechamber at cylinder 1		AR01.30-P-5402HA
24	Check position of bracket of TDC sensor, correct		AR03.00-P-1101-03HA
			Figure
			Figure
			Figure

Coolant pump, coolant thermostat

Fig 3: Identifying Dial Gauge Holder (601 589 07 21 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Identifying Dial Gauge (001 589 53 21 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 5: Identifying Fixing Pin (603 589 01 21 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 6: Identifying Counter-Holder (603 589 00 40 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
