Checking basic position of camshafts - AR05.20-P-6010HA

ENGINE 604, 605, 606 /

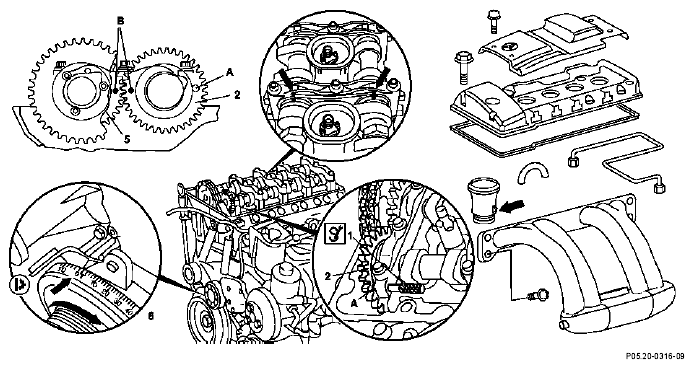

Fig 1: Identifying Basic Position Of Camshafts

Fig. item, etc.	Procedure
6	Position piston of cylinder 1 to ignition TDC	Crank engine at crankshaft. Do not  crank engine backward or crank engine at the camshaft.
1, 2	Lock inlet camshaft	Insert the retaining pin (1) through camshaft bearing cap 1 into the hole (A) in the inlet camshaft gear (2).
			Figure
2, 5	Check basic position of camshafts	The two ø 1.5 mm holes (B) in the camshaft gears (2, 5) must be opposite each other. If necessary after checking ↓
		Set basic position of camshafts The injection pump should be positioned before start of delivery at cylinder 1	AR05.20-P-6020HA

Fig 2: Identifying Fixing Pin (111 589 03 15 00)
