Removing, installing right engine support - AR22.10-P-4340CV

ENGINE 112 in MODEL 210.081 /082 /281 /282

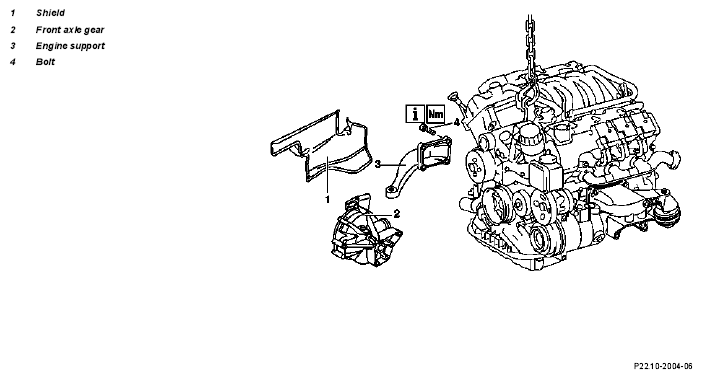

Fig 1: Identifying Right Engine Support Components (Engine 112)

	Removing, installing
1	Remove engine mounts		AR22.10-P-1100CV
2	Remove shield (1)
3	Remove front drive gear (2)		AR33.30-P-0525A
4	Unbolt engine support (3) at crankcase	Bolts (4) must be used only once.
			*BA22.10-P-1005-01L
			Fig 2
5	Remove engine support (3)
6	Install in the reverse order
7	Inspect front axle gear for leaks

Engine mounts, engine supports

Number	Designation			Engine 112.921/941, 113.940 in model 210.081/ 082/083/281/ 282/283
BA22.10-P-1005-01L	Bolt of engine support to crankcase	1st stage	Nm	20
		2nd stage	∠ °	90

Fig 2: Identifying External Torx Set (001 589 76 09 00)
