Removing and installing engine mount - AR22.10-P-1100CV
ENGINE 112 in MODEL 210.081 /082 /281 /282
| Remove/Install | |||
| 1 | Disconnect/connect battery's ground cable | Installation: After connecting, read fault memory, encode radio and normalize power windows. Vehicles with stationary heater: adjust time display on stationary heater. |
AR54.10-P-0003A |
| 2 | Take off poly V-belt | AR13.22-P-1202BA | |
| 3 | Remove generator (1) | AR15.40-P-5032EB | |
| 4 | Remove engine trim panel | ||
| 5 | Separate connector (G3/3x1) of sensor | ||
| 6 | Remove middle engine panel | AR61.20-P-1105AB | |
| 7 | Fit on engine supporting frame | AR01.10-P-7500-03B | |
| 8 | Remove steering shield (2) | ||
| 9 | Remove exhaust pipe (3) | AR49.10-P-7000A | |
| 10 | Unscrew bolts (4) of engine mounts (5) at engine supports | *BA22.10-P-1004-01L | |

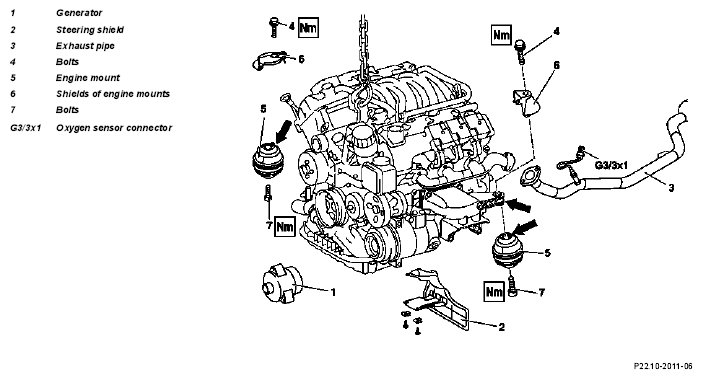

| Fig 2 | |||
| 11 | Remove shield of engine mount (6) | Installation: The recesses in the shields must be located in the anti-twist locks of the engine supports. |
|
| 12 | Raise engine | Do not over-tension coolant hoses! Do not damage drive shafts and cup seals! |
|
| 13 | Unscrew bolts (7) of engine mounts (5) at front axle carrier | *BA22.10-P-1001-01L | |
| 14 | Remove engine mounts (5) | Installation: |
|
| Environmental protection regulations for disposal of engine mounts | Dispose engine mounts into mixed scrap. | ||
| 15 | Install in the reverse order | ||
| 16 | Read out fault memory and erase | Stored faults which can result from cables being disconnected or from simulation during removal and installation or test work, have to be processed and erased in the fault memories after completing the work. ↓ Diagnosis Manual Volume 2, Index 0: Connecting and using test equipment |
| Number | Designation | Engines 112.921/941, 113.940 in models 210.081/ 082/083/281/ 282/283 | |
|---|---|---|---|
| BA22.10-P-1001-01L | Bolt of front engine mounts to front axle carrier | Nm | 35 |
| BA22.10-P-1004-01L | Bolt of front engine mount to engine support | Nm | 55 |
