Remove/install glow plugs - AR15.20-P-4111H

ENGINE 604, 605.910/912/960 /962, 606.912 /961 /962 /964

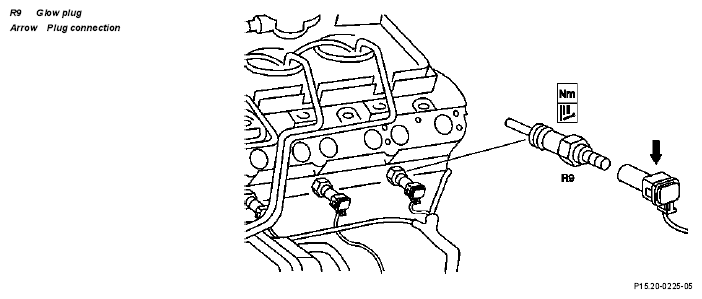

Fig 1: Identifying Glow Plugs Components

G04631761

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig. item, etc.	Work instructions
	Remove intake manifold	Engine 605.91	AR09.20-P-1310H
	Remove charge air distribution pipe	Engines 605.960/962	AR09.41-P-1310H
	Remove and install resonance intake pipe	Engine 606.912	AR09.20-P-1984H
	Remove/install charge air distribution pipe	Engine 606.961/962, 606.964	AR09.41-P-1310HA
	Glow plugs	use the socket wrench attachment to install	*BA15.20-P-1001-01A
			*WH58.30-Z-1014-06A
	The diameter of the glow plug connection has changed	Engine 605.910	BT15.20-P-0001-01A

TORQUE SPECIFICATION

Preglow system

Number	Designation		Motor 601 602.982/983 603, 604, 605, 606
BA15.20-P-1001-01A	Glow plug to cylinder head	NM	20

Commercially available tools

Number	Designation
WH58.30-Z-1014-06A	Socket wrench bit 12 mm long
