Remove/install engine - AR01.10-P-2400HC

ENGINE 606.962 in MODEL 210

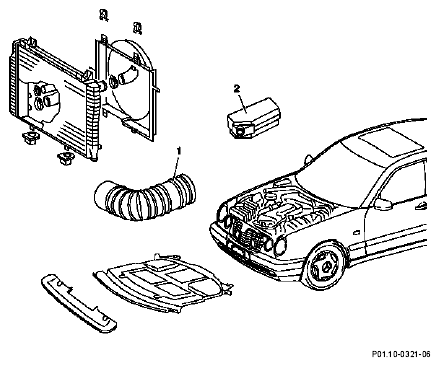

Fig 1: Identifying Engine Components - Model 210 (1 Of 2)
G04634517Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

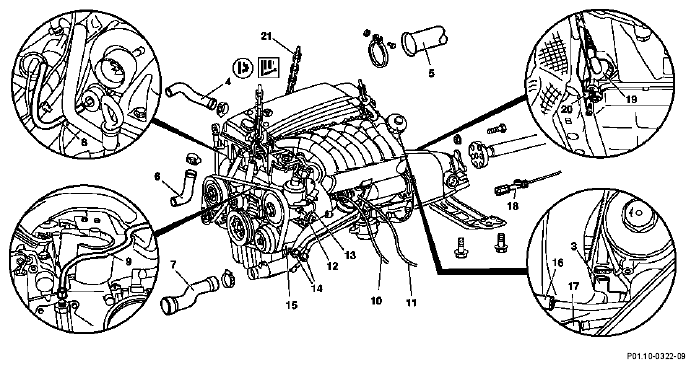

Fig 2: Identifying Engine Components - Model 210 (2 Of 2)
G04634518Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Remove/install
1 Disconnect battery ground cable   AR54.10-P-0003A
2 Remove aspirator hose (1)
3 Remove air filter housing (2).
4 Remove bottom section of sound-proofing capsule Model 210 AR94.30-P-5300AB
DANGER Risk of injury  to skin and eyes caused by scalding from contact with hot coolant spray.
Risk of poisoning  from swallowing coolant.
Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers.
Wear protective gloves, protective clothing and safety glasses.
AS20.00-Z-0001-01A
5 Drain coolant IMPORTANT At radiator and crankcase AR20.00-P-1142HW
6 Disconnect automatic transmission oil lines Connection fitting for automatic transmission oil lines
REFER TO SHOP-MADE TOOLS Connect transmission oil lines with a plug   WF58.50-P-2020-01A
7 Remove radiator   AR20.20-P-3865HB
8 Disconnect coolant hose (4) at cylinder head and coolant hose (3) at oil filter housing IMPORTANTInstallation:  Check condition of hose clamps and hoses, replace if necessary
    COMMERCIALLY AVAILABLE TOOLS *WH58.30-Z-1001-06A
    COMMERCIALLY AVAILABLE TOOLS *WH58.30-Z-1002-06A
9 Attach guard plate for radiator / condenser if AC (code 580, 581) fitted
REFER TO SHOP-MADE TOOLS Guard plate for radiator / condenser   WF58.50-P-0110-01A
10 Disconnect engine wiring harness   AR01.00-P-2410H
11 Unscrew exhaust system (5) at intermediate flange of turbocharger and at transmission
12 Remove boost pressure hoses (6, 7).
13.1 Remove poly-V-belt if AC (code 580, 581) fitted AR13.22-P-1202HA
14 Disconnect lines of vacuum supply (8, 9, 10, 11) Identify lines if necessary
IMPORTANTInstallation:  For routing of vacuum line, see Diesel Injection ↓
Engine 606
Diagnosis Manual diesel engine volume 1
Register 3.1

15 Unscrew lines of power steering pump (12, 13) IMPORTANT At level control (code 217B) detach hose to oil reservoir
Before disconnecting the lines, extract oil at reservoir.
AR46.30-P-0500A
    TORQUE SPECIFICATION *BA46.30-P-1002-01A
    TORQUE SPECIFICATION *BA46.30-P-1003-01A
    SPECIAL TOOL *112589007200
16 Separate lines of engine oil cooler (14
17.1 Unplug electrical connection of AC compressor if AC (code 580, 581) fitted
18.1 Unbolt AC compressor (15) if AC (code 580, 581) fitted
IMPORTANT Mount A/C compressor with connected pipe system below in the engine compartment.
*BA83.55-P-1001-01A
DANGER Risk of explosion  caused by ignition of flammable products, risk of poisoning  caused by inhaling fuel vapors or swallowing fuel as well as risk of injury  to skin and eyes exposed to fuel. No fire, sparks, open flames or smoking.
Pour fuels only into suitable and appropriately marked containers.
Wear protective clothing when handling fuel.
AS47.00-Z-0001-01A
19 Disconnect fuel lines (16, 17) IMPORTANT Disconnect the body side lines and connect with a hose piece.
20 Unhinge shift rod at selector lever
21 Unscrew propeller shaft at transmission   AR41.10-P-0050EA
22 Remove/install cable for parking shift lock (18) NOTES Only in selector lever position "P"
IMPORTANTInstallation:  ↓
AR27.60-P-1000B
    Adjust cable for parking shift lock AR27.60-P-0965B
23 Remove right protective shield (20) at transmission
24 Disconnect connector (19) for electrical control unit at the transmission
25 Unbolt engine mounts at front body.   AR22.10-P-1260HA
26 Remove rear engine mount NOTES Support transmission AR22.10-P-1160HB
27 Raise engine, remove NOTES Ensure that the injection line is not damaged when attaching to front engine lifting eyes
IMPORTANT Secure additional chain to exhaust manifold and attach to third mounting hook of engine hoist
AR01.10-P-7500-03HA
    COMMERCIALLY AVAILABLE TOOLS *WE58.40-Z-1012-11A
    COMMERCIALLY AVAILABLE TOOLS *WH58.30-Z-1001-07A
28 Install in the reverse order
DANGER Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near engine Secure vehicle to prevent it from moving.
Wear closed and snug-fitting work clothes.
Do not grasp hot or rotating parts.
AS00.00-Z-0005-01A
29 Inspect ATF level in automatic transmission   AR27.00-P-0101A
30 Inspect oil level of power steering pump, adjust to correct level   AP46.00-P-4611BB
31.1 Fill pressure oil system If level control (code 217B) fitted AR32.30-P-0630A
32 Fill cooling system   AR20.00-P-1142HA
NOTES Notes on coolant All engines AH20.00-N-2080-01A
33 Inspect cooling system for leaks NOTES Engine with new cylinder head gasket:
Do not pressure-test cooling system until engine has reached operating temperature.
AR20.00-P-1010HA
34 Read fault memory, erase. Stored faults possibly caused by previous simulation or by cables disconnected in the process of installation or testing must be processed and erased in the DTC memories once all work is completed.
Diagnosis Manual Volume 1.1: Index 0:
Connecting and using test equipment.

TORQUE SPECIFICATION Refrigerant compressor

Number Designation Engines 104.945/995, 111.942/947/970, 604.912/917, 605.912/962, 606.912/962 in model 210
BA83.55-P-1001-01A Bolt, refrigerant compressor to bracket Nm 23
TORQUE SPECIFICATION Power steering pump

Number Designation Model 210.003/004/010/ 015/017/020/025/035/ 037/045/053/055/072/ 210/215/217/225/235/ 237/245/272/610/617 Models 210.061/063/ 065/070/074/08 1/082/083/261/ 263/265/270/274/281/282/283/ 663
BA46.30-P-1002-01A Return line to power steering pump Nm - 2
BA46.30-P-1003-01A High-pressure expansion hose to power steering pump M14x1.5 Nm - -
M16x1.5 Nm 45 45
Fig 3: Identifying (112 589 00 72 00) Hand Pump
G04634519Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Commercially available tools

Number Designation
WH58.30-Z-1001-06A 6 mm socket hexagon on flexible shaft for hose clamps with worm drive
WH58.30-Z-1002-06A 7 mm socket hexagon on flexible shaft for hose clamps with worm drive
WH58.30-Z-1001-07A Shackle, DIN 82101
Workshop equipment

WE58.40-Z-1012-11A Load regulator (engine hoist), self-locking
