Removing and installing throttle control cable - AR30.10-P-3400H

ENGINE 604, 605.910/912/960, 606.912

Shown on model 202

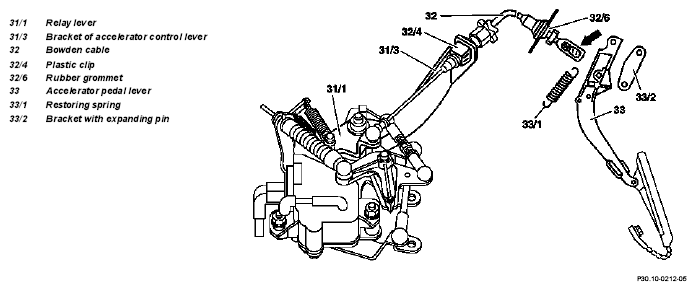

Fig 1: Identifying Throttle Control Cable Components (Shown On Model 202)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Throttle Control Cable With Spring In Throttle Control Cable Mount

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing, installing
1	Compress plastic clip (32/4) and pull out of bracket of accelerator control lever (31/3) together with bowden cable
2.1	Release restoring spring (33/1)	Model 202
3	Detach bowden cable mount (arrow) at accelerator pedal lever (33)	Pull out bracket with expanding pin (33/2) for this step, press in
4	Press bowden cable (32) to the outside, from the interior of the car	Do not press out rubber grommet (32/6)
5	Take out bowden cable (32) completely, working from engine compartment	Inspect rubber grommet (32/6), replace if necessary Bowden cable with spring in bowden cable mount. At WOT, the accelerator pedal lever travel is increased by compressing the spring. This enables the kickdown switch to operate.
6	Install in the reverse order
7	Check accelerator control, adjust if necessary	Engine 604.910, 605.910/960 in model 202 with automatic transmission 722.4	AR30.10-P-1010HB
		Engine 604.912, 605.912, 606.912 in model 210 with automatic transmission 722.4	AR30.10-P-1010HD
		Engine 604, 605, 606.91 with manual transmission 717.4 Engine 604, 605, 606.91 with automatic transmission 722.6	AR30.10-P-1010HC
