Adjusting accelerator control - AR30.10-P-1010HC

ENGINE 602.982, 604.###, 605.###, 606.91##0 with TRANSMISSION 717.4

ENGINE 602.982, 604.###, 605.###, 606.91# /961 /962 #2, 611.961 with TRANSMISSION 722.6

Shown on models with automatic transmission

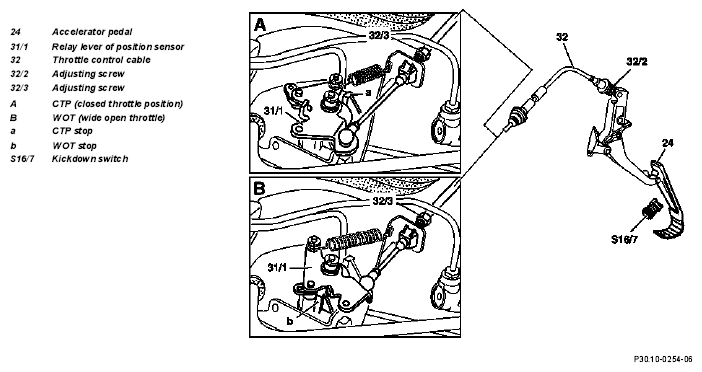

Fig 1: Identifying Accelerator Control Components (Shown On Models With Automatic Transmission)
G04624497Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on models with manual transmission

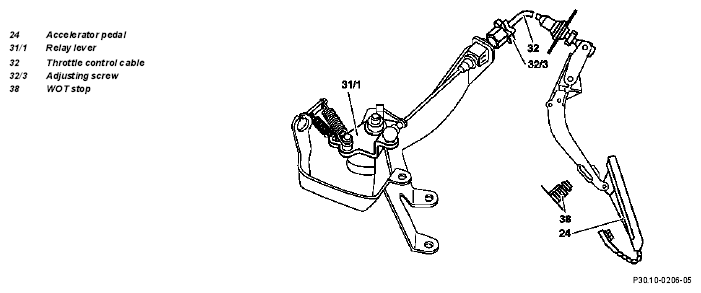

Fig 2: Identifying Accelerator Control Components (Shown On Models With Manual Transmission)
G04624498Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on models with manual transmission

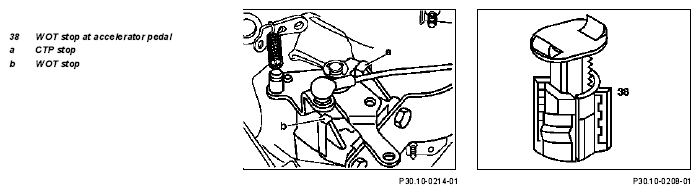

Fig 3: Identifying WOT Stop & CP Stop (Shown On Models With Manual Transmission)
G04624499Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
INSPECT Inspecting
1 Inspect ease of operation and condition of relay lever (31/1) and throttle control cable (32) NOTES Replace parts if necessary
  Adjusting  IMPORTANT CTP
2 The relay lever (31/1) must rest against the CTP stop (a) when no pressure is applied to accelerator IMPORTANT Hand-held tester must indicate 0 %.
See ↓
Engine 602/604/605/606: Diagnosis Manual Diesel Engine Volume 1.1 Index A2-A5
REFER TO SELF-DIAGNOSTIC SYSTEMS   Engine 611 up to 6.99
See ↓
Diagnosis Manual Diesel Engine Volume 1.2
Engine 611 as of 7.99
See ↓
STAR DIAGNOSIS		 AD00.00-P-2000-03A
3 Turn adjusting nut (32/3) sufficiently until relay lever (31/1) is resting against CTP stop (a), or accelerator pedal has no further idle travel
  Adjusting  IMPORTANT WOT for automatic transmission
4.1 Depress accelerator pedal (24) fully until it makes contact with the kickdown switch (S16/7) Automatic transmission
IMPORTANT Do not operate kickdown switch (S16/7).
IMPORTANT Hand-held tester must indicate 100 %.
See ↓
Engine 602/604/605/606: Diagnosis Manual Diesel Engine Volume 1.1 Index A2/A3
REFER TO SELF-DIAGNOSTIC SYSTEMS   Engine 611 up to 6.99
See ↓
Diagnosis Manual Diesel Engine Volume 1.2
Engine 611 as of 7.99
See ↓
STAR DIAGNOSIS		 AD00.00-P-2000-03A
5.1 Turn adjusting screw (32/3) until relay lever (31/1) is resting against WOT stop (b) NOTES Do not over-tension throttle control cable (32).
  Adjusting  IMPORTANT WOT for manual transmission
6.1 Depress accelerator pedal (24) fully until relay lever (31/1) has reached the WOT stop (b) Manual transmission
IMPORTANT Hand-held tester must indicate 100 %. See ↓ Engine 602/604/605/606: Diagnosis Manual Diesel Engine Volume 1.1 Index A2/A3.
REFER TO SELF-DIAGNOSTIC SYSTEMS   Engine 611 up to 6.99 See ↓
Diagnosis Manual Diesel Engine Volume 1.2
Engine 611 as of 7.99 See ↓
STAR DIAGNOSIS		 AD00.00-P-2000-03A
7.1 Adjust to WOT stop (38) IMPORTANT Release WOT stop (38) by turning to the right for this step, position against accelerator pedal and lock.
INSPECT Inspecting
8 Inspect WOT and CTP settings
