Remove/install retaining lock for crankshaft / ring gear - AR03.30-P-5000B

ENGINE 112.945 in MODEL 463.209 /232 /233 /244 /245 /250

ENGINE 112 in MODEL 129, 163, 170, 202, 203, 208, 209, 210, 220, 230.467

ENGINE 113.962 in MODEL 463.206 /240 /241 /247 /248 /249 /254

ENGINE 113 in MODEL 129, 163, 202, 208, 209, 210, 211.076 /276, 215, 220, 230.472 /474 /475

ENGINE 137 in MODEL 215, 220

ENGINE 112.913 in MODEL 211.061 /261

ENGINE 112.949 in MODEL 211.065 /265

ENGINE 113.967 in MODEL 211.070 /270

ENGINE 113.982 in MODEL 463.243 /246

ENGINE 275.950 /980 in MODEL 215, 220

ENGINE 275.951 in MODEL 230.476

ENGINE 113.988 in MODEL 203.076 /276

ENGINE 275.981 in MODEL 230.479

ENGINE 113.989 in MODEL 171.473

ENGINE 275.954 in MODEL 230.477

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1	Remove starter	Model 203.065 /265 /764 Model 210.074 /274 Model 215.373 Model 220.073 /163 /173 Model 202, 208.474 with engine 113
		Model 463 with engine 112.945	AR15.30-P-7100GW
		Model 463 with engine 113.962/ 982	AR15.30-P-7100GV
		Model 129 Model 211 except 211.076 /276	AR15.30-P-7100CS
		Model 163 with engine 112, 113	AR15.30-P-7100GH
		Model 170 with engine 112.947 /960	AR15.30-P-7100GA
		Model 171.473	AR15.30-P-7100VT
		Model 202.026 /086 with engine 112.910	AR15.30-P-7100ED
		Model 202.029 /089 with engine 112.920 Model 202.088 with engine 112.915 Model 208.365 /465 with engine 112.940 Model 208.370 /470 with engine 113.943 Model 208.374 with engine 113.984
		Model 203.061 /261 with engine 112.912	AR15.30-P-7100P
		Model 203.064 /264 with engine 112.946 Model 203.076 /276 with engine 113.988 Model 209.361 /461 with engine 112.912 Model 209.365 /465 with engine 112.955 Model 209.375 /475 with engine 113.968 Model 209.376 /476 with engine 113.987
		Model 210.061 /062 /063 /065 /081 /082 /261 /262 /263 /265 /281 /282 /663 with ENGINE 112 Model 210.070 /270 /083 /283 with engine 113	AR15.30-P-7100FF
		Model 215.378 Model 220.178 /878 with engine 137.970	AR15.30-P-7100N
		Model 215, 220, 230 with engine 275	AR15.30-P-7100H
		Model 215.375 with engine 113	AR15.30-P-7100I
		Model 220.070/ 075/ 170/ 175/ 875 with engine 113 Model 220.063 /065 /067 /165 /167 with engine 112
		Model 203.081 /084 /281 /284, 220.087 /187 with engine 112 Model 220.083 /084 /183 /184 with engine 113	AR15.30-P-7100PW
		Model 211.076 /276 with engine 113 Model 215.374 with engine 113 Model 220.074 /174 with engine 113 Model 230 with engine 112, 113	AR15.30-P-7100R

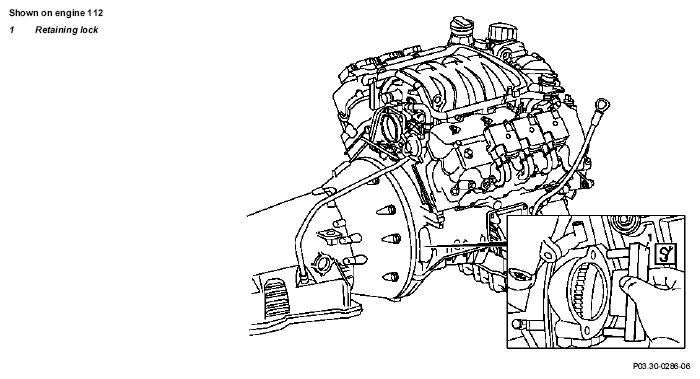

2	Insert retaining lock (1)	Slide retaining lock (1) into starter opening and allow to latch in ring gear; if required crank engine at crankshaft in direction of rotation.
		Retaining lock for engine 112, 113, 137	Fig 2
		Retaining lock for engine 275	Fig 3
3	Install in the reverse order
