Remove starter, install - AR15.30-P-7100N

ENGINE 137.970 in MODEL 215.378, 220.178 /878

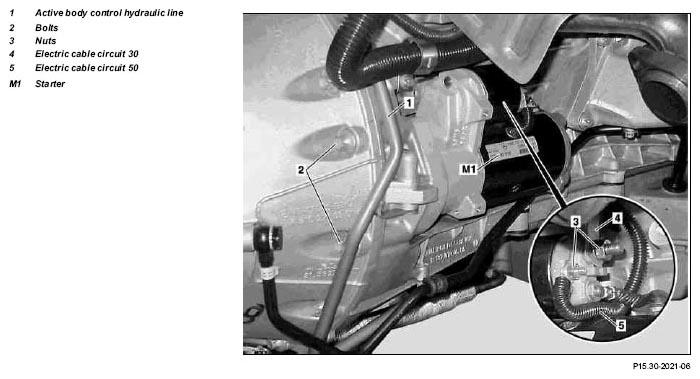

Fig 1: Identifying Starter Remove/Install Components (Engine 137.970 In Model 215.378, 220.178 /878)

	Remove/Install
	Risk of death  cased by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the hydraulic hoist and position the four support plates below the hoist support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of explosion  caused by explosive gas. Risk of poisoning and caustic burns  caused by swallowing battery electrolyte. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Pour battery electrolyte only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Dismount ground line to the battery	Do not connect quiescent current retention unit. A short circuit could occur, if the electrical line circuit 30 (B+) comes into contact with the ground.	AR54.10-P-0003I
	Notes on battery		AH54.10-P-0001-01A
2	Detach lower engine compartment paneling		AR61.20-P-1105M
3	Remove front right exhaust system		AR49.10-P-5531L
4	Unscrew bolts of Active Body Control hydraulic line (1)
5	Unscrew bolts (2) of starter		*BA15.30-P-1003-01G
6	Unscrew nuts (3) and remove electrical lines (4, 5)	Nut of terminal 30 connection	*BA15.30-P-1001-01G
		Nut of connection circuit 50	*BA15.30-P-1002-01G
7	Take starter (M1) down and out
8.1	Check ring gear on the drive plate for wear and damage	When replacing the starter. Rotate engine at the crankshaft in direction of rotation.
9	Install in the reverse order
10	Perform function check
11	Render electrical system operational	See ↓
		Perform basic programming	AR00.19-P-0200M
12	Read diagnostic trouble code memory and erase	When the work is complete stored faults must be worked on in the diagnostic trouble code memories and erased. ↓
		Connect STAR DIAGNOSIS, interrogate fault memory	AD00.00-P-2000-04A

STARTER
