Removing/installing the starter - AR15.30-P-7100FF

ENGINE 112.911 in MODELS 210.061 /261

ENGINE 112.914 in MODELS 210.062 /262

ENGINE 112.921 in MODELS 210.063 /081 /263 /281 /663

ENGINE 112.941 in MODELS 210.065 /082 /265 /282

ENGINE 113.940 in MODELS 210.070 /270 /083 /283

Shown on ENGINE 112

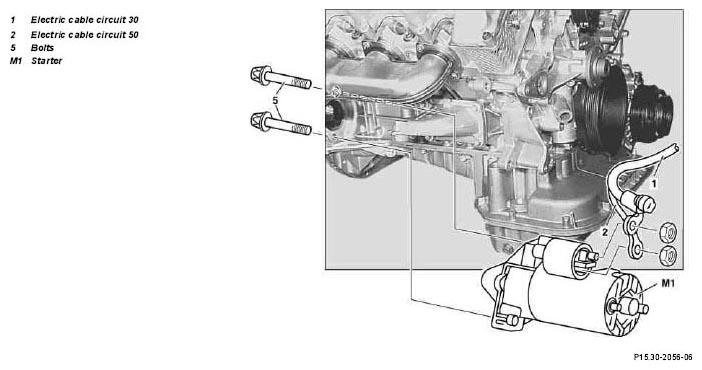

Fig 1: Identifying Starter Components - Shown On Engine 112
G04631765

Shown on ENGINE 112

Fig 2: Identifying Electrical Line And Bracket - Shown On Engine 112
G04631766
REMOVINGINSTALLING Removing/installing
DANGER Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead acid batteries No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. AS54.10-Z-0001-01A
1 Disconnect battery ground cable NOTES Do not connect a quiescent current retention device. AR54.10-P-0003A
  NOTES Insulate cable lug of ground cable to provide protection from unintentional contact between disconnected ground cable and ground point W10
NOTES Notes on battery All models AH54.10-P-0001-01A
2 Remove engine compartment paneling at the bottom middle   AR61.20-P-1105AB
3 Remove air filter
4 Remove washer fluid reservoir for windshield and headlamp
5 Detach fan shroud above
6 Remove left and right bolt for engine support on engine mount TORQUE SPECIFICATION *BA22.10-P-1004-01L
7 Raise engine about 20 mm with engine supporting frame SPECIAL TOOL Fig 3
8 Remove shield for propeller shaft IMPORTANT Only for 4Matic.
9 Remove right catalytic converter IMPORTANT Only for 4Matic. AR49.10-P-5531A
10 Disconnect electric cables (1/2) TORQUE SPECIFICATION Remove protective cap.
    TORQUE SPECIFICATION Nut for terminal 30 connection *BA15.30-P-1001-01A
    TORQUE SPECIFICATION Nut for connection circuit 50 *BA15.30-P-1002-01A
11 Press electrical line (3) out of the bracket (4) (if installed)
12 Remove bolts (5) TORQUE SPECIFICATION Starter bolt *BA15.30-P-1003-01A
13 Take starter (M1) down and out
14 Install in reverse order
15 Carry out function check
16 Render electrical system operational IMPORTANT Carry out basic programming. AR00.19-P-0200D
TORQUE SPECIFICATION STARTER

Number Designation Engine 112 except 112.951, 113.94/ 96/98
BA15.30-P-1001-01A Nut for connection of circuit 30 Nm 14
BA15.30-P-1002-01A Nut for connection of circuit 50 Nm 6
BA15.30-P-1003-01A Bolt for starter Nm 42
TORQUE SPECIFICATION ENGINE MOUNTS, ENGINE SUPPORTs

Number Designation Engine 112.921/941, 113.940 in models 210.081/ 082/083/281/ 282/283 Engines 112.911/914/921/941, 113.940/980 in models 210.061/062/063/065/070/074/261/262/263/265/270/274
BA22.10-P-1004-01L Bolt for front engine mount on engine support Nm 55 55
Fig 3: Identifying Engine Support Bracket (140 589 01 61 00)
G04631767
