Removal and installation of propeller shaft intermediate bearing and replacement of grooved ball bearing - AR41.10-P-0100DA: Notes
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 129, 140, 170, 202, 208, 210

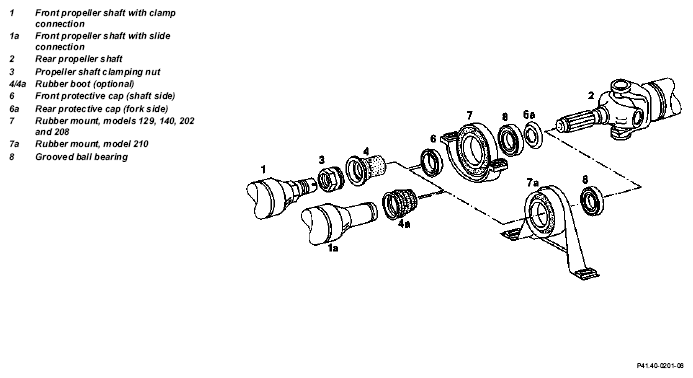

Fig 1: Identifying Propeller Shaft Intermediate Bearing And Replacement Of Grooved Ball Bearing Remove/Install Components
| Removal, installation | |||
|---|---|---|---|
| 1 | Remove propeller shaft | Model 129 | AR41.10-P-0050A |
| Model 140 | AR41.10-P-0050DA | ||
| Model 202, 170, 208 | AR41.10-P-0050EA | ||
| Model 210 | AR41.10-P-0050B | ||
| 2 | Separate front (1, 1a) and rear propeller shaft (2) at clamp connection or slide connection | Observe Technical modification ↓ |
AR41.10-P-0050-05DA |
| Clamp connection of propeller shaft | Model 129.066, 140.04/050/051 | BT41.10-P-9110-01DA | |
| Universal joint on rear propeller shaft | Model 140.050/051 | BT41.10-P-9111-02DA | |
| 3 | Pull rubber boot (4, 4a) off joint fork | ||
| 4 | Pull off rubber mount (7, 7a) with grooved ball bearing (8) and front protective cap (6) | AR41.10-P-0100-01DA | |
| AR41.10-P-0100-05DA | |||
| Fit new protective cap on grooved ball bearing. Models 129, 140 and 202 as of 6/95 are no longer fitted with a protective cap. Models 170, 208, 210 are no protective cap Observe Technical modification ↓ |
AR41.10-P-0100-04DA | ||
| Propeller shaft intermediate bearing | Models 129.066/067/076, 140.04/05/07/13 | BT41.10-P-9208-01DA | |
| 5 | Remove rear protective cap (6a) | ||
| 6 | Press grooved ball bearing out of rubber mount | Figure | |
| Figure | |||
| AR41.10-P-0100-02DA | |||
| 7 | Check rubber mount and grooved ball bearing for wear | Replace parts if necessary. | |
| 8 | Install in reverse sequence. |
