Replacing oil pump chain - AR18.10-P-2140AO: Notes
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 120
| Removing, installing | |||
| 1 | Remove oil pan | Model 129 | AR01.45-P-7500AO |
| Model 140 | AR01.45-P-7500AP | ||
| 2 | Remove spark plugs | ||

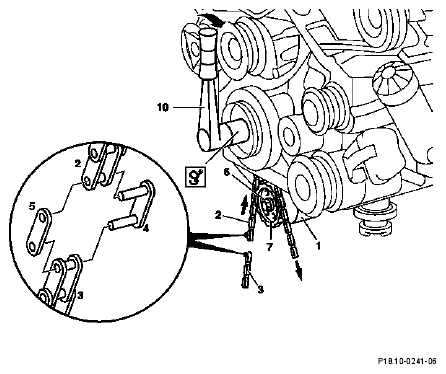

| 3 | Separate oil pump chain | AR18.10-P-2140-01AO | |
| Figure | |||
| Figure | |||
| Figure | |||
| Figure | |||
| 4 | Rivet oil pump chain | AR18.10-P-2140-02AO | |
| *BA18.10-P-1001-01A | |||
| Figure | |||
| Figure | |||
| Figure | |||
| Figure | |||
| Figure | |||
| 5 | Install in the reverse order |
| Number | Designation | Engine 120 | |
|---|---|---|---|
| BA18.10-P-1001-01A | Chain sprocket to oil pump | Nm | 28 |
