Remove/install rear window - AR67.20-P-2000D: Notes

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 140.02 /03 /04 /05 /13

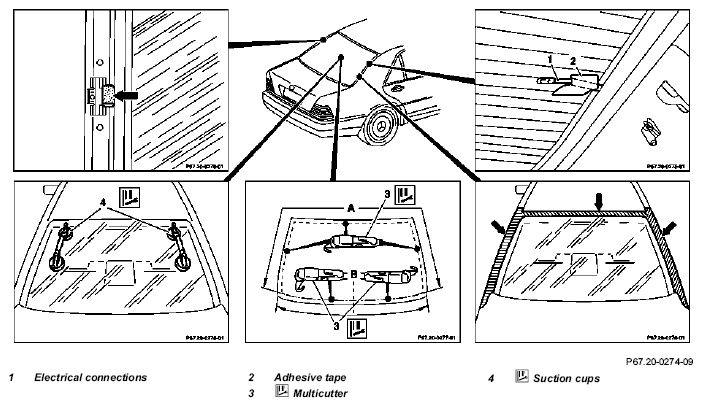

Fig 1: Identifying Rear Window Components
G05440206Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVING Remove
1 Prepare glue cartridge COMMERCIALLY AVAILABLE TOOLS Betagun 2K electric cartridge gun AR67.10-P-1000-07P
*WH58.30-Z-1002-20A
*BR00.45-Z-1015-02A
2 Remove molding on rear window   ra67001400220x
3 Remove paneling from rear pillar   ra68001400449x
4 Remove electric connections (1) from rear window and fasten with adhesive tape (2)
5 Mask window cutout with adhesive tape (arrows)
6 Remove supports on clips (arrow)
DANGER Risk of injury from slipping when clamping blade in the multicutter and from glass splinters when cutting out glued windows Always interrupt air supply when inserting or removing blade.
Wear protective gloves and eye protection.		 AS67.00-Z-0001-01A
7 Cut rear window out of with cutting blade   AR67.20-P-2000-02D
    SPECIAL TOOL Figure
    COMMERCIALLY AVAILABLE TOOLS *WH58.30-Z-1003-20A
8 Lift rear window from body with suction cups (4) COMMERCIALLY AVAILABLE TOOLS *WE58.40-Z-1029-11A
INSTALLING Install
9 Reinstall support on clips at same point (arrow)
10 Prepare body flange for installation of window   AR67.10-P-1501-01P
    SPECIAL TOOL Figure
    COMMERCIALLY AVAILABLE TOOLS *WH58.30-Z-1003-20A
11 Prepare window for installation   AR67.10-P-1000-03P
12 Line up rear window in the body opening   AR67.20-P-2000-04D
    IMPORTANT Observe gap *BE67.20-P-1001-01B
13 Apply glue   AR67.10-P-1000-08P
    COMMERCIALLY AVAILABLE TOOLS Betagun 2K electric cartridge gun *WH58.30-Z-1002-20A
    IMPORTANT Height of glue bead approx. 13 mm
    NOTES Install window within 10 minutes before adhesive force of glue starts to decrease
14 Install rear window   AR67.20-P-2000-05D
    COMMERCIALLY AVAILABLE TOOLS *WE58.40-Z-1029-11A
    IMPORTANT The curing time is approx. 1 hour from the time the rear window is installed
    NOTES Open crank window in vehicle to prevent the rear window from being pressed outward by air pressure when the door is closed.
15 Install molding on rear window   ra67001400220x
16 Connect electric connections (1) on rear window
17 Install paneling on rear pillar   ra68001400449x
INSPECTION AND SETTING DATA OF REAR PANEL WINDOW, REAR WINDOW

Number Designation Model 140
BE67.20-P-1001-01B Distance between top edge of window and rear edge of roof Dimension" mm A" 16
    Fig. see AR67.20-P-2000-04D
Fig 2: Identifying Cutting Blade (124 589 40 63 00)
G05440207Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 3: Identifying Cutting Blade (124 589 21 63 00)
G05440208Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1002-20A Electric cartridge gun
WH58.30-Z-1003-20A Multicutter
WORKSHOP EQUIPMENT

WE58.40-Z-1029-11A Cup suction tool for window removal and installation
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1015-02A Repair kit A 220 670 00 93
