Adjustment of the rear side window - ra67001400420x(0420)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140, Coupe

Preliminary work:

Rear side wall panelling removed (REMOVAL AND INSTALLATION OF THE SIDEWALL PANELING, REAR )

Exterior panelling on rear fender removed

Window in driver's door checked and adjusted (ADJUSTMENT OF THE CRANK WINDOW IN THE DRIVER'S DOOR , B)

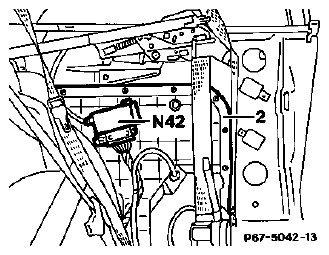

Fig 1: Identifying Control Unit And Electrical Plug Connections

G05440214

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

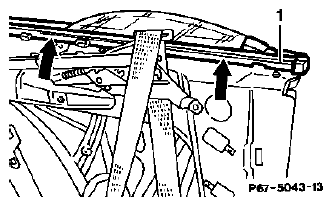

Fig 2: Locating Inside Sealing Rail

G05440215

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Locating Window Lift Bar Screws

G05440216

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

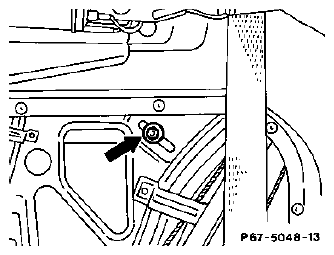

Fig 4: Locating Window Lift Rail Screw

G05440225

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Cover (2) on installation opening	remove, install.
Sealing rail (1) on inside of window shaft	remove, install.
Screws (arrows) on window lift rail	loosen.
Height stop screw (arrow)	loosen.

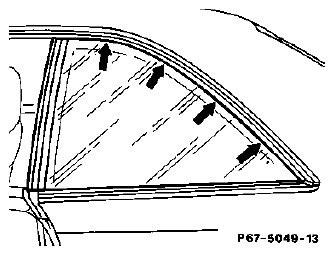

Fig 5: Locating Outer Top Edge Of Glass

G05440226

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

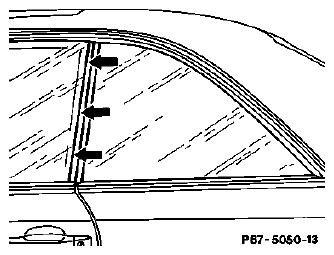

Fig 6: Locating Edge Of Glass

G05440227

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

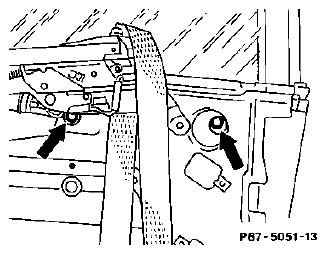

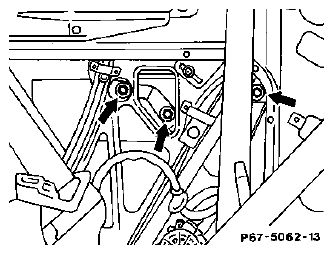

Fig 7: Locating Window Lift Rail Screws

G05440228

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

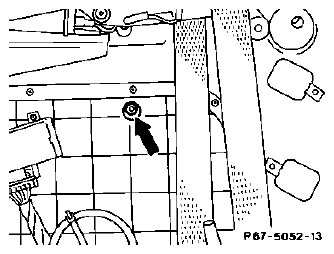

Fig 8: Locating Rail Screw

G05440229

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Inclination and longitudinal direction	adjust; the outer top edge of the glass
of rear side window	should contact the outer sealing lip of the sealing frame over the entire length (arrows).
Front edge of rear side window	adjust so that it is parallel to the rear edge of the window in the front door.
Screws on window lift rail (arrows)	tighten through installation opening (2 each).
Height stop on rear window lift (arrow)	adjust so that the outer sealing lip of the sealing frame contacts the outer edge of the glass with a slight amount of tension when the rear side window is closed.

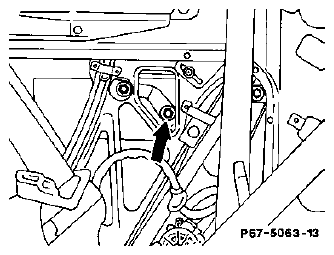

Fig 9: Locating Rear Window Lift Center Screw

G05440230

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

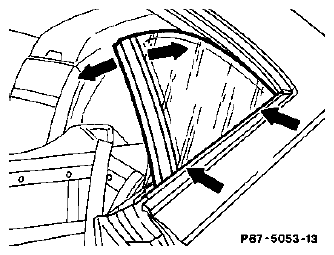

Fig 10: Checking Rear Side Window

G05440231

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

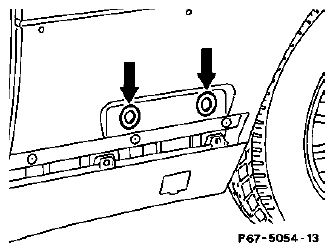

Fig 11: Locating Rear Side Window Adjustment Screw

G05440232

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

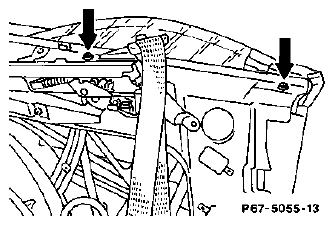

Fig 12: Locating Mounting Screws

G05440233

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Rear side window	open and tighten center screw on window lift rail.
Pretension of rear side window and parallel position in window shaft	check, adjust, if required.
Adjustment screw at bottom of rear window lift	adjust as required, close opening in rear fender after adjustment.
Additional correction	is possible with the top mounting screws for the rear window lift (oblong hole).

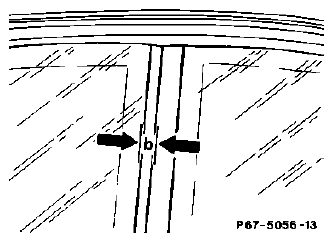

Fig 13: Identifying Rear Edge Of Window Dimension

G05440234

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

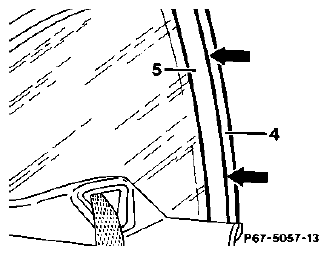

Fig 14: Identifying Inside Cover And Sealing Profile

G05440235

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

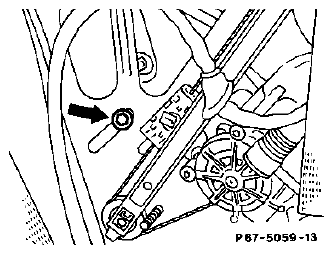

Fig 15: Locating Bottom Stop Screw

G05440236

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

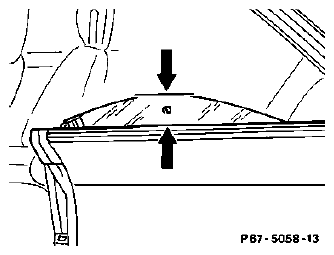

Fig 16: Checking Dimension Of a

G05440237

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Front sealing profile (4) on rear side window	adjust in relation to rear edge of window in front door (dimension b = 10 mm), for this purpose pull off inside cover (5) toward rear, loosen screws (3 each) and adjust sealing profile (4).
Screws (arrow) on bottom stop	loosen.
Rear side window	open and adjust bottom stop so that inside of window extends approx. 65 mm beyond the rubber lip on the outer sealing rail.
Screw (arrow) on bottom stop	tighten.
Slider and slot in rear window lift	lubricate with MB lubricating paste, part no. 000 989 31 51.
