Removal and installation of the sidewall paneling, rear - ra68001400456x(0456)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140, Coupe

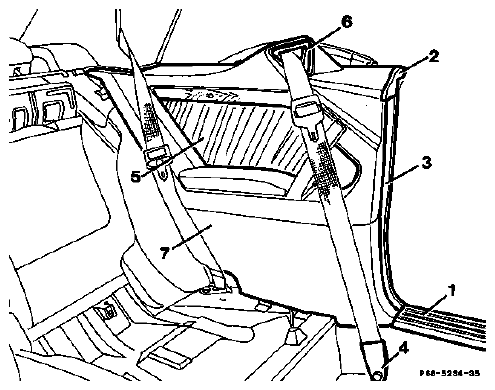

Fig 1: Identifying Side Wall Panelling In Rear Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Rear side window	open.
Door entry strip (1)	remove upward.
Screws in chrome molding (2)	screw out (3 each) and remove chrome molding.
Door edge protector (3)	pull off.
Cover above bolt on seat belt end fitting (4)	press off and screw out bolt, 17 mm, 35 Nm.
Trimming (5)	unclip at top with plastic wedge and remove trimming (5), insert tab at front when installing.
Screws (arrows)	screw out and remove.
Seat belt guide (6) on seat belt extender	pull off of rack toward front; for this purpose extend seat belt extender and pull off seat belt guide from rack stop.
Side wall panelling (7)	pull out of insert groove starting at front top, remove side wall panelling while guiding belt end fitting through.
Reinstall	in opposite order.
Function	check.

Installation note

Before installing the side wall panelling (7), check clips (arrows) on interior panel, window shaft and bottom front of B-pillar.

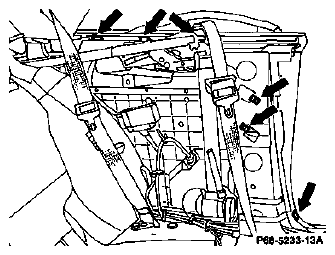

Fig 2: Identifying Clips On Interior Panel, Window Shaft And Bottom Front Of B-Pillar

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Removal

Open rear side window.
Remove door entry strip (1) upward.
Remove screws (3 each) from chrome molding (2) and remove chrome molding.
Remove door edge protector (3) on B-pillar.
Press cover off of bolt on seat belt end fitting (4) and screw out bolt (17 mm).
Tightening torque: 35 Nm.
Unclip trimming (5) at top with plastic wedge (arrows) and remove trimming.

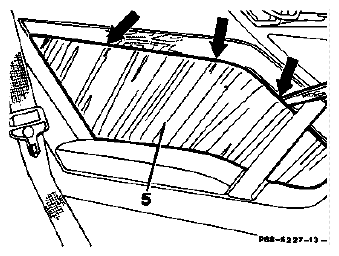

Fig 3: Identifying Trimming
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

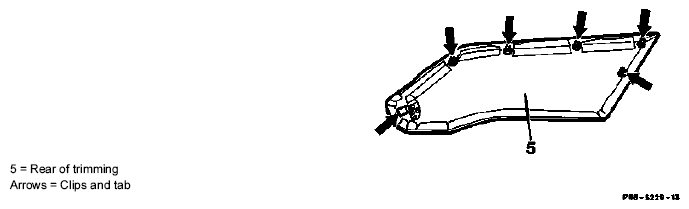

Fig 4: Identifying Rear Of Trimming
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Screw out screws (arrows).

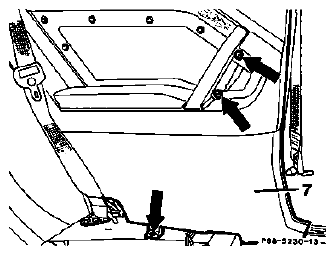

Fig 5: Identifying Screws
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Extend seat belt extender and pull seat belt guide (6) off of rack toward front.

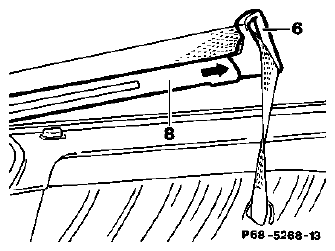

Fig 6: Pulling Seat Belt Guide Off Of Rack
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Pull side wall panelling out of clips (3 each) on window shaft.
Remove side wall panelling; guide seat belt end fitting (4) and seat belt guide (6) through.
Reinstall in opposite order. Observe installation note.

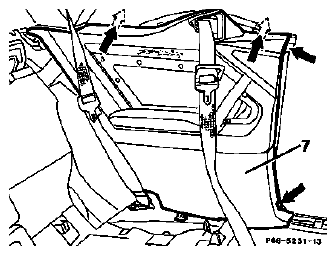

Fig 7: Removing Side Wall Panelling Guide Seat Belt End Fitting And Seat Belt Guide
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

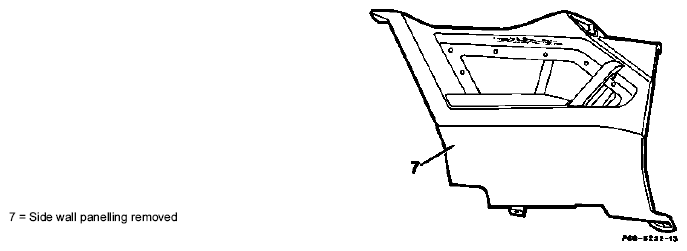

Fig 8: Identifying Side Wall Panelling
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
