Removal and installation of rear backrest cover - ra91001400187x(0187)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
Preliminary work:
Rear backrest removed (Removal and installation of rear seat and backrest )
Folding arm rest for rear seat system removed (Removal and installation of rear seat folding arm rest )
Rear head restraint mechanism removed (Removal and installation of rear head restraint mechanism )

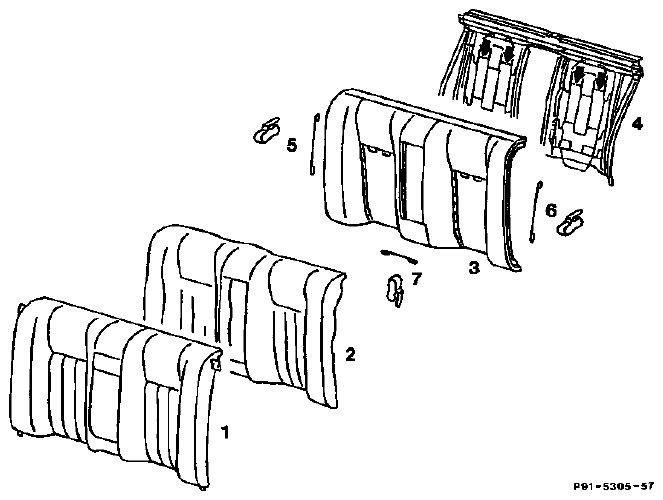

| Rear backrest (1) | lay down with upper side on a suitable surface. |
| Covering (2) | pull out all round on the plug-in section of the backrest frame (4). |
| Cover (2) on arm rest cut-out | pull out of plug-in section. |
| Upper transverse loosening device on left and right | unhook (4 metal hooks, arrows). |
| Side climbing nettle | detach from support (3). |
| Cover (2) with support (3) | remove from backrest frame (4). |
| Longitudinal loosening device (5 and 6) | unhook from support (3) by unhooking plastic hooks (6 pieces) on the wires (4 pieces). |
| Transverse loosening device (7) in area of lower arm rest | unhook (plastic hooks, 2 pieces). |
| Cover (2) | remove from support (3). |
| Install in opposite order. |
Installation note
In order to avoid pressure points due to the longitudinal and transverse loosening wires, when hooked in the wires must be aligned so that they lie in the loosening channels of the support (5).
